+# 花样滑冰动作识别
+
+## 内容
+
+* [项目说明](##1.项目说明)
+* [项目难点](##2.项目难点)
+* [解决方案](##3.解决方案)
+* [数据准备](##4.数据准备)
+* [ST-GCN详细代码介绍](##5.ST-GCN详细代码介绍)
+* [模型训练](##6.模型训练)
+* [模型测试](##7.模型测试)
+* [模型导出](##8.模型导出)
+* [模型推理](##9.模型推理)
+
+## 1.项目说明
+
+### 1.1 项目背景
+
+花样滑冰起源最早可追溯到12世纪的北欧，1892年国际滑冰联盟在荷兰正式成立，并制定了该项目的比赛规则1924年的第1届冬季奥运会就将花样滑冰列为比赛项目。但是在我国，该项运动在国内的普及度却并不高。中国最高级的组织机构：中国花样滑冰协会成立于2018年1月18日的北京。因此，很多观众在观看花样滑冰表演或比赛时，除了直观感受运动员展示出来的花样滑冰的艺术美感之外，可能很少有一些对花样滑冰专业技术动作，例如点冰跳、刀刃跳、空中旋转
+周数与组合跳跃等有所认识。
+
+本项目首次将基于人体骨架关键点的人类动作识别算法 ST-GCN，即时空图卷积网络模型，运用于花样滑冰动作识别，可以实时地识别视频中花样滑冰运动员的技术动作并添加标注予以显示，帮助更多入门级别的观众了解花样滑冰，使其能更好的比较和体会不同的花样滑冰动作，对花样滑冰运动的进一步推广有积极的作用。
+
+
+
+
+
+
+
+
+### 1.2 项目亮点
+
+- **花样滑冰细粒度分类数据集。** 竞技体育是动作分析的难点。数据集Figure Skating Dataset 旨在通过花样滑冰研究人体的运动。在花样滑冰运动中，人体姿态和运动轨迹相较于其他运动呈现**复杂性强、类别多的特点**，对于研究视频中的人体动态是非常好的素材。**希望对我国竞技体育辅助训练和评估做出重要贡献**。
+
+- **简单轻量模型。** ST-GCN模型非常简洁，容易理解。作为骨骼点动作识别开山之作，以**简单的网络结构就可以完成复杂任务**，并且达到不错的效果。具体实现过程中，整个模型核心部分仅仅涉及到**三个卷积核**。正因如此，训练效率也大大提升。
+
+
+## 2.项目难点
+
+- 时空序列视频内容分类的模型较少
+- 以帧为最小单位的光流法分类参数多，难以训练
+- 花样滑冰动作细粒度分类的类间方差很大，类内方差很小：
+
+ 花样滑冰动作有跳跃、旋转、托举、步伐及转体、燕式步，而跳跃当中又有更加精细的动作。
+
+ 以跳跃为例：跳跃式花样滑冰中最重要的动作要素之一。跳跃按照选手起跳与落冰所用兵刃方式与空中旋转周数分为多种，因此可以产生多种组合，这就增加了分类的难度。如下图为滑冰鞋冰刃示意图：
+
+ 如下图，左图为Salchow跳，右图为Loop跳。可见两种跳跃非常相似，区别仅在于脚步动作。
+
+
+
+
+
+
+
+
+
+## 3.解决方案
+
+在动作识别领域中，不仅仅需要学习到画面中人物动作的空间特征，同时也需要学习到时间维度的特征。在传统动作识别中有一个经典方法[TSN (Temporal Segment Networks for Action Recognition in Video)](https://paperswithcode.com/paper/temporal-segment-networks-for-action)
+
+但是TSN有如下缺点：
+- **时间信息不重要**，往往通过一帧就可以判别动作类型
+- **不以人体为中心**，模型做出的判断通过对整体画面来识别
+- **图片数据量大**，难以拟合
+
+因此，本案例通过选择**ST-GCN**来完成对花样滑冰中动作姿态的识别任务
+该模型由香港中文大学-商汤科技联合实验室在AAAI 2018 录用论文[「Spatial Temporal Graph Convolutional Networks for Skeleton Based Action Recognition」](http://arxiv.org/pdf/1801.07455.pdf)中提出，不仅为解决基于人体骨架关键点的人类动作识别问题提供了新颖的思路，在标准的动作识别数据集上也取得了较大的性能提升。
+
+
+
+
+
+
+
+时空图卷积网络模型ST-GCN通过将图卷积网络（GCN）和时间卷积网络（TCN）结合起来，扩展到时空图模型，设计出了用于行为识别的骨骼点序列通用表示，该模型将人体骨骼表示为图的数据结构，如下图所示，其中图的每个节点对应于人体的一个关节点。图中存在两种类型的边，即符合关节的自然连接的空间边（spatial edge）和在连续的时间步骤中连接相同关节的时间边（temporal edge）。在此基础上构建多层的时空图卷积，它允许信息沿着空间和时间两个维度进行整合。
+
+
+
+
+
+
+
+- 要完成通过ST-GCN识别动作类别，首先要将原始视频数据通过[openpose](https://github.com/CMU-Perceptual-Computing-Lab/openpose)转化为骨骼点数据。完整流程为下图所示步骤。
+
+
+
+
+
+
+
+
+
+## 4.数据准备
+
+### 4.1 FSD数据集介绍
+
+本案例使用数据集为Figure Skating30数据集（FSD-30）是在[Figure Skating10数据集（FSD-10）](extension://oikmahiipjniocckomdccmplodldodja/pdf-viewer/web/viewer.html?file=https%3A%2F%2Farxiv.org%2Fpdf%2F2002.03312v1.pdf#=&zoom=130).基础上增加了细粒度分类。为简单起见，以FSD-10做介绍。
+
+- 数据下载：[训练集数据](https://videotag.bj.bcebos.com/Data/FSD_train_data.npy)、[训练集标签](https://videotag.bj.bcebos.com/Data/FSD_train_label.npy)
+
+在FSD中，所有的视频素材从2017 到2018 年的花样滑冰锦标赛中采集。源视频素材中视频的帧率被统一标准化至每秒30 帧，并且图像大小是1080 * 720 来保证数据集的相对一致性。之后我们通过2D姿态估计算法Open Pose对视频进行逐帧骨骼点提取，最后以.npy格式保存数据集。更多信息可参考：[FSD-10](extension://oikmahiipjniocckomdccmplodldodja/pdf-viewer/web/viewer.html?file=https%3A%2F%2Farxiv.org%2Fpdf%2F2002.03312v1.pdf#=&zoom=130)
+
+
+
+
+
+
+
+如下图所示为FSD-10所包含的动作分类：
+
+
+
+
+
+
+
+**案例提供FSD-30训练数据集与测试数据集的目录结构如下所示：**
+
+```txt
+train_data.npy # 2922
+train_label.npy # 2922
+test_A_data.npy # 628
+test_B_data.npy # 634
+```
+- **test_A测试集暂未公布**
+
+其中train_label.npy通过np.load()读取后会得到一个一维张量，每一个元素为一个值在0-29之间的整形变量代表动作的标签；data.npy文件通过np.load()读取后，会得到一个形状为N×C×T×V×M的五维张量，每个维度的具体含义如下：
+
+| 维度符号 | 维度值大小 | 维度含义 | 补充说明 |
+| :---- | :----: | :----: | :---- |
+| N | 样本数 | 代表N个样本 | 无 |
+| C | 3 | 分别代表每个关节点的x, y坐标和置信度 | 每个x，y均被放缩至-1到1之间 |
+| T | 1500 | 代表动作的持续时间长度，共有1500帧 | 有的动作的实际长度可能不足1500，例如可能只有500的有效帧数，我们在其后重复补充0直到1500帧，来保证T维度的统一性 |
+| V | 25 | 代表25个关节点 | 具体关节点的含义可看下方的骨架示例图 |
+| M | 1 | 代表1个运动员个数 | 无 |
+
+骨架示例图：
+
+
+
+
+
+
+### 4.2 花样滑冰视频转化为骨骼点数据
+
+- 这一部分为FSD作者团队提供了将原始视频数据转化为FSD数据格式的方法，由于用到了openpose等，不便于在AI studio中运行，用户可自行在本地配置相应环境后运行。在这里只进行简单介绍。
+
+花样滑冰数据提取采用了openpose，通过其提供的demo或是相应的api来实现数据的提取，因此需要用户配置openpose环境。
+如下是通过花样滑冰数据集构建项目[Skeleton Scripts](https://github.com/HaxiSnake/skeleton_scripts)提取骨骼点数据方法的具体介绍。
+
+#### step1 安装openpose
+
+- 参考：https://github.com/CMU-Perceptual-Computing-Lab/openpose
+
+#### step2 测试openpose提供demo
+
+- 这里通过测试openpose的demo程序来验证是否安装成功。
+
+demo1：检测视频中身体骨骼点（以linux系统为例）：
+
+```bash
+./build/examples/openpose/openpose.bin --video examples_video.avi --write_json output/ --display 0 --render_pose 0
+```
+
+执行成功之后会在output/路径下生成视频每一帧骨骼点数据的json文件。
+
+demo2：检测视频中身体+面部+手部骨骼点（以linux系统为例）：
+
+```bash
+./build/examples/openpose/openpose.bin --video examples_video.avi --write_json output/ --display 0 --render_pose 0 --face --hand
+```
+
+执行成功之后会在output/路径下生成视频每一帧身体+面部+手部骨骼点数据的json文件。
+
+#### step3 视频及相关信息处理
+
+- 由于[Skeleton Scripts](https://github.com/HaxiSnake/skeleton_scripts)为制作花样滑冰数据集所用，因此此处步骤可能存在不同程度误差，实际请用户自行调试代码。
+
+将要转化的花样滑冰视频储存到[Skeleton Scripts](https://github.com/HaxiSnake/skeleton_scripts)的指定路径（可自行创建）：
+```bash
+./skating2.0/skating63/
+```
+
+同时需要用户自行完成对视频信息的提取，保存为label_skating63.csv文件，储存到如下路径中（可自行创建）：
+
+```bash
+./skating2.0/skating63/
+./skating2.0/skating63_openpose_result/
+```
+
+label_skating63.csv中格式如下：
+
+| 动作分类 | 视频文件名 | 视频帧数 | 动作标签 |
+| :----: | :----: | :----: | :---- |
+
+此处用户只需要输入视频文件名（无需后缀，默认后缀名为.mp4，其他格式需自行更改代码)，其他三项定义为空字符串即可，不同表项之间通过 ',' 分割。
+
+#### step4 执行skating_convert.py:
+
+- 注意，这一步需要根据用户对openpose的配置进行代码的更改，主要修改项为openpose路径、openpose-demo路径等，具体详见代码。
+
+本脚步原理是调用openpose提供的demo提取视频中的骨骼点，并进行数据格式清洗，最后将每个视频的提取结果结果打包成json文件，json文件储存在如下路径：
+
+```bash
+./skating2.0/skating63_openpose_result/label_skating63_data/
+```
+
+#### step5 执行skating_gendata.py:
+
+将json文件整理为npy文件并保存，多个视频文件将保存为一个npy文件，保存路径为：
+
+```bash
+./skating2.0/skating63_openpose_result/skeleton_file/
+```
+
+- 通过上述步骤就可以将视频数据转化为无标签的骨骼点数据。
+
+- 最后用户只需将npy数据输入送入网络开始模型测试，亦可通过预测引擎推理（如下）。
+
+### 4.3 数据集导入项目
+数据集可以从[此链接](https://github.com/PaddlePaddle/PaddleVideo/blob/develop/docs/zh-CN/dataset/fsd.md)处下载。数据集下载完成后，可以将数据集上传到aistudio项目中，上传后的数据集路径在/home/aistudio/data目录下。
+
+如果是直接fork的本项目，在/home/aistudio/data 目录下已经包含了下载好的训练数据和测试数据。
+
+
+```python
+#解压数据集
+!unzip -o /home/aistudio/data/data126425/FSD30.zip -d /home/aistudio/work/dataset/
+```
+
+ Archive: /home/aistudio/data/data126425/FSD30.zip
+ inflating: /home/aistudio/work/dataset/FSD_test_data.npy
+ inflating: /home/aistudio/work/dataset/FSD_test_label.npy
+ inflating: /home/aistudio/work/dataset/FSD_train_data.npy
+ inflating: /home/aistudio/work/dataset/FSD_train_label.npy
+
+
+
+```python
+# 检查数据集所在路径
+!tree -L 3 /home/aistudio/work/dataset
+```
+
+ /home/aistudio/work/dataset
+ ├── FSD_test_data.npy
+ ├── FSD_test_label.npy
+ ├── FSD_train_data.npy
+ └── FSD_train_label.npy
+
+ 0 directories, 4 files
+
+
+## 5.ST-GCN详细代码介绍
+
+ST-GCN的网络结构大致可以分为**三个部分**，首先，对网络输入一个五维矩阵$\left(N,C,T,V;M\right)$.其中N为视频数据量；C为关节特征向量，包括$\left(x,y,acc\right)$；T为视频中抽取的关键帧的数量；V表示关节的数量，在本项目中采用25个关节数量；M则是一个视频中的人数，然后再对输入数据进行Batch Normalization批量归一化，接着，通过设计ST-GCN单元，引入ATT注意力模型并交替使用GCN图卷积网络和TCN时间卷积网络，对时间和空间维度进行变换，在这一过程中对关节的特征维度进行升维，对关键帧维度进行降维，最后，通过调用平均池化层、全连接层，并后接SoftMax层输出，对特征进行分类
+
+### 5.1 GCN部分
+图卷积网络（Graph Convolutional Network，GCN）借助图谱的理论来实现空间拓扑图上的卷积，提取出图的空间特征，具体来说，就是将人体骨骼点及其连接看作图，再使用图的邻接矩阵、度矩阵和拉普拉斯矩阵的特征值和特征向量来研究该图的性质。
+在原论文中，作者提到他们使用了[「Kipf, T. N., and Welling, M. 2017. Semi-supervised classification with graph convolutional networks. In ICLR 2017」](https://arxiv.org/pdf/1609.02907.pdf)中的GCN架构，其图卷积数学公式如下:
+#### $f_{out}=\Lambda^{-\ \frac{1}{2}}\left(A+I\right)\Lambda^{-\ \frac{1}{2}}f_{in}W$
+
+其中，$f_{out}$为输出，A为邻接矩阵，I为单位矩阵，$A^{ii}=\ \sum_{j}{(A^{ij}+I^{ij})}$, W是需要学习的空间矩阵。
+但是在实际的应用中，最简单的图卷积已经能达到很好的效果，所以在实际应用中，作者采用的是$D^{-1}A$图卷积核。D为度矩阵。
+
+#### 本项目中GCN部分优化：
+
+在原ST-GCN实现中,作者对于图卷积实现过程中，对称归一化形式的Laplace矩阵$(\Lambda^{-\ \frac{1}{2}}\left(A+I\right)\Lambda^{-\ \frac{1}{2}})$使用了注意力机制，使其部分可学习。原ST-GCN将骨骼点构成的图，根据不同的动作划分为了三个子图$\left(A_1,A_2,A_3\right)$（如下图），分别表达向心运动、离心运动和静止的动作特征。
+由此产生了三个卷积核$\widehat{A_1},\widehat{A_2},\widehat{A_3}$,对于多核的图卷积表达式：
+#### $\sum_{k}\sum_{v}{\left(XW_k\right)_{nkctv}\widehat{A_{kvw}}}=\widehat{X_{nctw}}$
+
+
+
+
+
+
+
+ 通过大量实验发现，将其随机设为完全可学习的矩阵$(A\prime)$，使其随着训练，自动学习到骨骼点之间的连接关系，获得了更好的效果。
+
+同时，这一步的搭建需要使用爱因斯坦求和约定：$nkctv，kvw→nctw$.
+
+本项目中采用随机划分的方式，使得子图的划分可以被学习，并且对三个子图的图卷积合并为一个，进行并行计算，提升了算法性能，同时避免使用了paddle中没有提供的爱因斯坦求和约定，实现了GCN的构建，并且对其优化。
+ 通过这两步优化，最终实现的图卷积形式为$A^\prime f_{in}W$，如下图所示，其中W作为对输入的升维变换，同时将输入划分为三部分；然后通过对矩阵重组拼接，对三个部分（三个子图）进行$A\prime$的特征变换。
+
+
+
+
+
+
+
+
+
+```python
+#准备环境
+import paddle
+import numpy as np
+import matplotlib.pyplot as plt
+import pandas as pd
+import pickle
+#全局变量
+BATCH_SIZE=32
+```
+
+
+
+
+```python
+class GCN(paddle.nn.Layer):
+ def __init__(self,in_channels,out_channels,stride=1):
+ super(GCN, self).__init__()
+ self.conv1=paddle.nn.Conv2D(in_channels=in_channels,out_channels=3*out_channels,kernel_size=1,stride=1)
+ self.conv2=paddle.nn.Conv2D(in_channels=25*3,out_channels=25,kernel_size=1)
+
+ def forward(self, x):
+ # X----[N,C,T,V]
+ x=self.conv1(x)
+ N,C,T,V=paddle.shape(x)
+ x=paddle.reshape(x,[N,C//3,3,T,V])
+ x=paddle.transpose(x,perm=[0,1,2,4,3])
+ x=paddle.reshape(x,[N,C//3,3*V,T])
+ x=paddle.transpose(x,perm=[0,2,1,3])
+ x=self.conv2(x)
+ x=paddle.transpose(x,perm=[0,2,1,3])
+ x=paddle.transpose(x,perm=[0,1,3,2])
+ return x
+```
+
+### 5.2 TCN部分
+ST-GCN单元通过GCN学习空间中相邻关节的局部特征，而时序卷积网络（Temporal convolutional network，TCN）则用于学习时间中关节变化的局部特征。如图表4，TCN相较于CNN，对时间序列提取特征时，不再受限于卷积核的大小。对普通卷积，需要更多层才能采集到一段时间序列的特征，而TCN中采用的膨胀卷积（Dilated Convolution），通过更宽的卷积核，可以采样更宽的信息。卷积核先完成一个节点在其所有帧上的卷积，再移动到下一个节点，如此便得到了骨骼点图在叠加下的时序特征。对于TCN网络，我们通过使用$9\times1$的卷积核进行卷积。
+为了保持总体的特征量不变，当关节点特征向量维度(C)成倍变化时，我们的步长采取2，其余采取1。
+下图为TCN膨胀卷积示意图。
+
+
+
+
+
+
+
+
+
+
+```python
+class TCN(paddle.nn.Layer):
+ def __init__(self,in_channels,out_channels,stride=1):
+ super(TCN, self).__init__()
+ self.conv=paddle.nn.Conv2D(in_channels=in_channels,out_channels=out_channels,kernel_size=(9,1),padding=(4,0),stride=(stride,1))#补零，4
+ #C=64
+ def forward(self, x):
+ x=self.conv(x)
+ return x
+```
+
+### 5.3 ST-GCN单元
+本项目根据ST-GCN网络的构建在参考已发布的论文基础上又有所改进和创新。
+图为本项目中构建的ST-GCN网络结构图。
+
+
+
+
+
+
+
+
+```python
+class LoopNet(paddle.nn.Layer):
+ def __init__(self,in_channels,out_channels,stride=1,if_res=1):
+ super(LoopNet, self).__init__()
+ self.bn_res=paddle.nn.BatchNorm2D(out_channels)
+ self.conv_res=paddle.nn.Conv2D(in_channels=in_channels,out_channels=out_channels,kernel_size=1,stride=(stride,1))
+ self.gcn=GCN(in_channels=in_channels,out_channels=out_channels)
+ self.bn1=paddle.nn.BatchNorm2D(out_channels)
+ self.tcn=TCN(in_channels=out_channels,out_channels=out_channels,stride=stride)
+ self.bn2=paddle.nn.BatchNorm2D(out_channels)
+ self.if_res=if_res
+ self.out_channels=out_channels
+ def forward(self, x):
+ if(self.if_res):#残差层
+ y=self.conv_res(x)
+ y=self.bn_res(y)
+ x=self.gcn(x) #gcn层
+ x=self.bn1(x) #bn层
+ x=paddle.nn.functional.relu(x)
+ x=self.tcn(x)
+ x=self.bn2(x)
+ out=x
+ if(self.if_res):
+ out=out+y
+ out=paddle.nn.functional.relu(out)
+ return out
+
+class MyNet(paddle.nn.Layer):
+ def __init__(self):
+ super(MyNet, self).__init__()
+ self.loopnet=paddle.nn.Sequential(
+ LoopNet(in_channels=2,out_channels=64,if_res=0),
+ LoopNet(in_channels=64,out_channels=64),
+ LoopNet(in_channels=64,out_channels=64),
+ LoopNet(in_channels=64,out_channels=64),
+ LoopNet(in_channels=64,out_channels=128,stride=2),
+ LoopNet(in_channels=128,out_channels=128),
+ LoopNet(in_channels=128,out_channels=128),
+ LoopNet(in_channels=128,out_channels=256,stride=2),
+ LoopNet(in_channels=256,out_channels=256),
+ LoopNet(in_channels=256,out_channels=256)
+ )
+ self.globalpooling=paddle.nn.AdaptiveAvgPool2D(output_size=(1,1))
+ self.flatten=paddle.nn.Flatten()
+ self.fc=paddle.nn.Linear(in_features=256,out_features=30) #更改分类数目时只需更改out_features
+ def forward(self, x):
+ x=self.loopnet(x)
+ x=self.globalpooling(x)
+ x=self.flatten(x)
+ x=self.fc(x)
+ return x
+```
+
+## 6.模型训练
+
+本项目基于PaddleVideo项目完成识别网络训练：
+- PaddleVideo [github](https://github.com/PaddlePaddle/PaddleVideo)
+- PaddlePaddle-gpu==2.2.1
+
+### 6.1 下载PaddleVideo代码
+
+
+```python
+# 进入到gitclone 的PaddleVideo目录下
+%cd ~/work/
+
+# 从Github上下载PaddleVideo代码
+!git clone -b release/2.1.1 https://github.com/PaddlePaddle/PaddleVideo.git
+# 若网速较慢，可使用如下方法下载
+#!git clone -b release/2.1.1 https://hub.fastgit.org/PaddlePaddle/PaddleVideo.git
+```
+
+
+```python
+# 进入到gitclone 的PaddleVideo目录下
+%cd ~/work/PaddleVideo/
+```
+
+ /home/aistudio/work/PaddleVideo
+
+
+
+```python
+# 检查源代码文件结构
+!tree /home/aistudio/work/ -L 2
+```
+
+ /home/aistudio/work/
+ ├── dataset
+ │ ├── FSD_test_data.npy
+ │ ├── FSD_test_label.npy
+ │ ├── FSD_train_data.npy
+ │ └── FSD_train_label.npy
+ ├── inference
+ └── PaddleVideo
+ ├── benchmark
+ ├── configs
+ ├── data
+ ├── docs
+ ├── __init__.py
+ ├── LICENSE
+ ├── main.py
+ ├── MANIFEST.in
+ ├── output
+ ├── paddlevideo
+ ├── README_cn.md
+ ├── README.md
+ ├── requirements.txt
+ ├── run.sh
+ ├── setup.py
+ └── tools
+
+ 10 directories, 13 files
+
+
+### 6.2 配置代码环境，安装依赖
+
+
+```python
+!python3.7 -m pip install --upgrade pip
+!python3.7 -m pip install --upgrade -r requirements.txt
+```
+
+### 6.3 设置配置文件，完成行为识别算法训练
+
+PaddleVideo 通过yaml配置文件的方式选择不同的算法和训练参数等，这里我们使用`configs/recognition/stgcn/stgcn_fsd.yaml`配置文件完成ST-GCN模型算法训练。从该配置文件中，我们可以得到如下信息：
+
+#### 网络结构
+```yaml
+MODEL:
+ framework: "RecognizerGCN"
+ backbone:
+ name: "STGCN"
+ head:
+ name: "STGCNHead"
+ num_classes: 30
+```
+
+表示我们使用的是ST-GCN算法，framework为`RecognizerGCN`，backbone是时空图卷积网络`STGCN`，head使用对应的`STGCNHead`，数据集分类采用30分类 **（用若用户使用10分类数据集，请在此更改为num_classes:10）**。
+
+
+#### 数据路径
+
+```yaml
+DATASET:
+ batch_size: 32
+ num_workers: 4
+ test_batch_size: 4
+ test_num_workers: 0
+ train:
+ format: "SkeletonDataset"
+ file_path: "/home/aistudio/work/dataset/FSD_train_data.npy" # 手动配置
+ label_path: "/home/aistudio/work/dataset/FSD_train_label.npy" # 手动配置
+ test:
+ format: "SkeletonDataset"
+ file_path:"/home/aistudio/work/dataset/FSD_test_data.npy" # 手动配置
+ label_path: "/home/aistudio/work/dataset/FSD_test_label.npy" # 手动配置
+ test_mode: True
+```
+
+训练数据路径通过`DATASET.train.file_path`字段指定，训练标签路径通过`DATASET.train.label_path`字段指定，测试数据路径通过`DATASET.test.file_path`字段指定，训练标签路径通过`DATASET.teset.label_path`字段指定。这四个路径**需要用户在配置文件`configs/recognition/stgcn/stgcn_fsd.yaml`中手动配置好**。本项目中路径示例如上所示。若修改为10分类训练，除了修改数据集路径之外，在上一步网络结构中需要修改num_classes。
+
+（可以通过降低batch_size来提升实验效果，但是会加长训练时长）
+
+#### 数据处理
+
+```yaml
+PIPELINE:
+ train:
+ sample:
+ name: "SampleFrame"
+ window_size: 350
+ transform:
+ - SkeletonNorm:
+ test:
+ sample:
+ name: "SampleFrame"
+ window_size: 350
+ transform:
+ - SkeletonNorm:
+```
+
+数据处理主要包括两步操作，分别为`SampleFrame`和`SkeletonNorm`。
+
+#### 优化器
+
+```yaml
+OPTIMIZER:
+ name: 'Momentum'
+ momentum: 0.9
+ learning_rate:
+ name: 'CosineAnnealingDecay'
+ learning_rate: 0.05
+ T_max: 60
+ weight_decay:
+ name: 'L2'
+ value: 1e-4
+```
+
+网络训练使用的优化器为`Momentum`，学习率更新策略为`CosineAnnealingDecay`。
+
+
+关于yaml的更多细节，可以参考[PaddleVideo](https://github.com/PaddlePaddle/PaddleVideo/blob/develop/docs/en/tutorials/config.md)
+
+### 7.4 训练脚本
+
+ST-GCN模型的使用文档可参考[ST-GCN基于骨骼的行为识别模型](https://github.com/PaddlePaddle/PaddleVideo/blob/develop/docs/zh-CN/model_zoo/recognition/stgcn.md)。
+
+#### 训练启动命令
+
+```bash
+python3.7 main.py -c configs/recognition/stgcn/stgcn_fsd.yaml
+```
+
+你将会看到类似如下的训练日志
+```txt
+[08/16 14:42:12] epoch:[ 1/60 ] train step:0 loss: 3.18299 lr: 0.050000 top1: 0.20312 top5: 0.39062 batch_cost: 1.91478 sec, reader_cost: 1.37053 sec, ips: 33.42427 instance/sec.
+[08/16 14:42:17] epoch:[ 1/60 ] train step:10 loss: 1.92363 lr: 0.050000 top1: 0.26562 top5: 0.90625 batch_cost: 0.49070 sec, reader_cost: 0.00027 sec, ips: 130.42598 instance/sec.
+[08/16 14:42:22] epoch:[ 1/60 ] train step:20 loss: 1.92695 lr: 0.050000 top1: 0.18750 top5: 0.81250 batch_cost: 0.49012 sec, reader_cost: 0.00021 sec, ips: 130.58028 instance/sec.
+[08/16 14:42:22] END epoch:1 train loss_avg: 2.40230 top1_avg: 0.20610 top5_avg: 0.74405 avg_batch_cost: 0.49012 sec, avg_reader_cost: 0.00021 sec, batch_cost_sum: 11.80155 sec,
+```
+
+#### 注意事项
+- 请使用GPU版本的配置环境运行本模块
+- 训练结果保存在`PaddleVideo/output`文件夹下
+
+
+```python
+!python3.7 main.py -c configs/recognition/stgcn/stgcn_fsd.yaml
+```
+
+## 7.模型测试
+
+模型训练完成后，可使用测试脚本进行评估，
+
+#### 测试脚本启动命令
+```bash
+python3.7 main.py --test -c configs/recognition/stgcn/stgcn_fsd.yaml -w output/STGCN/STGCN_epoch_00200.pdparams
+```
+- 本案例中自带训练权重
+- 通过`-c`参数指定配置文件，通过`-w`指定权重存放路径进行模型测试。
+- **训练集暂未公开，公开之后可以在stgcn_fsd.yaml文件中修改训练集路径**
+
+#### ST-GCN模型实验精度
+本案例仅选用优化后单模型ST-GCN进行试验，分别在FSD30分类与10分类的测试集下计算模型精度。模型优化策略选用了数据平均抽帧（降维），随机可学习骨骼点子图划分、通过矩阵拼接替换爱因斯坦求和约定操作。下表展示了ST-GCN模型在不同测试集下实验精度结果（单卡NVIDIA GeForce RTX 3070 Ti）
+
+| 数据集类别 | Test Data | Top-1精度 |
+| :----: | :----: | :---- |
+|FSD30分类|Test_A|60.5%|
+|FSD30分类|Test_B|58.5%|
+|FSD10分类|Test data|91.0%|
+
+**在FSD10分类下需要修改 `configs/recognition/stgcn/stgcn_fsd.yaml` 文件中`num_classes`、`batch_size`等参数。通过修改参数（eg. batch_size:8,16)，可以达到91%左右的测试集精度。**
+
+
+
+
+```python
+# 通过-w参数指定模型权重进行测试
+!python3.7 main.py --test -c configs/recognition/stgcn/stgcn_fsd.yaml -w output/STGCN/STGCN_epoch_00200.pdparams
+```
+
+## 8.模型导出
+
+
+### 导出inference模型
+
+```bash
+python3.7 tools/export_model.py -c configs/recognition/stgcn/stgcn_fsd.yaml \
+ -p /home/aistudio/work/PaddleVideo/output/STGCN/STGCN_epoch_00200.pdparams \ #训练权重保存路径
+ -o /home/aistudio/work/inference/STGCN #模型输出路径
+```
+
+上述命令将生成预测所需的模型结构文件`STGCN.pdmodel`和模型权重文件`STGCN.pdparams`。
+
+**需要修改参数 -p和-o**
+
+- 各参数含义可参考[模型推理方法](https://github.com/PaddlePaddle/PaddleVideo/blob/release/2.0/docs/zh-CN/start.md#2-%E6%A8%A1%E5%9E%8B%E6%8E%A8%E7%90%86)
+
+
+```python
+!python3.7 tools/export_model.py -c configs/recognition/stgcn/stgcn_fsd.yaml -p /home/aistudio/work/PaddleVideo/output/STGCN/STGCN_epoch_00200.pdparams -o /home/aistudio/work/inference/STGCN
+```
+
+
+
+## 9.模型推理
+
+```bash
+python3.7 tools/predict.py --input_file /home /home/aistudio/work/dataset/example_skeleton_.npy \
+ --config configs/recognition/stgcn/stgcn_fsd.yaml \
+ --model_file /home/aistudio/work/inference/STGCN/STGCN.pdmodel \
+ --params_file /home/aistudio/work/inference/STGCN/STGCN.pdiparams \
+ --use_gpu=True \
+ --use_tensorrt=False
+```
+
+输出示例如下:
+
+```
+Current video file: /home/aistudio/work/dataset/example_skeleton_.npy
+ top-1 class: 26
+ top-1 score: 0.8217134475708008
+```
+
+可以看到，使用在花样滑冰数据集上训练好的ST-GCN模型对`/home/aistudio/work/dataset/example_skeleton_.npy`进行预测，输出的top1类别id为`26`，置信度为`0.8217134475708008`。
+
+
+
+```python
+!python3.7 tools/predict.py --input_file /home/aistudio/work/dataset/example_skeleton_.npy \
+ --config configs/recognition/stgcn/stgcn_fsd.yaml \
+ --model_file /home/aistudio/work/inference/STGCN/STGCN.pdmodel \
+ --params_file /home/aistudio/work/inference/STGCN/STGCN.pdiparams \
+ --use_gpu=True \
+ --use_tensorrt=False
+```
+
+## 数据来源
+
+本案例数据来源
+
+FSD-10: https://paperswithcode.com/paper/fsd-10-a-dataset-for-competitive-sports
+
+(FSD-30为FSD-10基础上扩展而来)
+
+## 参考文献
+- [Spatial Temporal Graph Convolutional Networks for Skeleton-Based Action Recognition](https://arxiv.org/abs/1801.07455), Sijie Yan, Yuanjun Xiong, Dahua Lin
+- [FSD-10: A Dataset for Competitive Sports Content Analysis](https://paperswithcode.com/paper/fsd-10-a-dataset-for-competitive-sports), Shenlan Liu, Xiang Liu, Gao Huang, Lin Feng, Lianyu Hu, Dong Jiang, Aibin Zhang, Yang Liu, Hong Qiao
+
+## 资源
+
+更多资源请参考：
+
+* 更多深度学习知识、产业案例，请参考：[awesome-DeepLearning](https://github.com/paddlepaddle/awesome-DeepLearning)
+
+* 更多目标检测模型，请参考：[PaddleDetection](https://github.com/PaddlePaddle/PaddleDetection)
+
+* 更多学习资料请参阅[飞桨深度学习平台](https://www.paddlepaddle.org.cn/?fr=paddleEdu_aistudio)
diff --git a/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/Instructions.md b/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/Instructions.md
new file mode 100644
index 000000000..f90e407d4
--- /dev/null
+++ b/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/Instructions.md
@@ -0,0 +1,14 @@
+**如下代码为展示，若需完成代码，可以通过PaddleVideo下载完整代码**
+- `stgcn.py`为ST-GCN模型代码
+- `skeleton.py`为读取数据代码
+- `skeleton_pipline.py`为数据处理代码
+
+**PaddleVideo获取方法：**
+```python
+# 从Github上下载PaddleVideo代码
+!git clone -b release/2.1.1 https://github.com/PaddlePaddle/PaddleVideo.git
+# 若网速较慢，可使用如下方法下载
+#!git clone -b release/2.1.1 https://hub.fastgit.org/PaddlePaddle/PaddleVideo.git
+```
+
+**也可从AI studio中直接打开案例运行：[基于ST-GCN实现花样滑冰动作分类]()**
diff --git a/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/skeleton.py b/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/skeleton.py
new file mode 100644
index 000000000..a46dcfb51
--- /dev/null
+++ b/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/skeleton.py
@@ -0,0 +1,79 @@
+# copyright (c) 2021 PaddlePaddle Authors. All Rights Reserve.
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import os.path as osp
+import copy
+import random
+import numpy as np
+import pickle
+
+from ..registry import DATASETS
+from .base import BaseDataset
+from ...utils import get_logger
+
+logger = get_logger("paddlevideo")
+
+
+@DATASETS.register()
+class SkeletonDataset(BaseDataset):
+ """
+ Skeleton dataset for action recognition.
+ The dataset loads skeleton feature, and apply norm operatations.
+ Args:
+ file_path (str): Path to the index file.
+ pipeline(obj): Define the pipeline of data preprocessing.
+ data_prefix (str): directory path of the data. Default: None.
+ test_mode (bool): Whether to bulid the test dataset. Default: False.
+ """
+
+ def __init__(self, file_path, pipeline, label_path=None, test_mode=False):
+ self.label_path = label_path
+ super().__init__(file_path, pipeline, test_mode=test_mode)
+
+ def load_file(self):
+ """Load feature file to get skeleton information."""
+ logger.info("Loading data, it will take some moment...")
+ self.data = np.load(self.file_path)
+ if self.label_path:
+ if self.label_path.endswith('npy'):
+ self.label = np.load(self.label_path)
+ elif self.label_path.endswith('pkl'):
+ with open(self.label_path, 'rb') as f:
+ sample_name, self.label = pickle.load(f)
+ else:
+ logger.info(
+ "Label path not provided when test_mode={}, here just output predictions."
+ .format(self.test_mode))
+ logger.info("Data Loaded!")
+ return self.data # used for __len__
+
+ def prepare_train(self, idx):
+ """Prepare the feature for training/valid given index. """
+ results = dict()
+ results['data'] = copy.deepcopy(self.data[idx])
+ results['label'] = copy.deepcopy(self.label[idx])
+ results = self.pipeline(results)
+ return results['data'], results['label']
+
+ def prepare_test(self, idx):
+ """Prepare the feature for test given index. """
+ results = dict()
+ results['data'] = copy.deepcopy(self.data[idx])
+ if self.label_path:
+ results['label'] = copy.deepcopy(self.label[idx])
+ results = self.pipeline(results)
+ return results['data'], results['label']
+ else:
+ results = self.pipeline(results)
+ return [results['data']]
diff --git a/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/skeleton_pipeline.py b/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/skeleton_pipeline.py
new file mode 100644
index 000000000..693da5ae0
--- /dev/null
+++ b/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/skeleton_pipeline.py
@@ -0,0 +1,114 @@
+# Copyright (c) 2021 PaddlePaddle Authors. All Rights Reserve.
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import os
+import numpy as np
+import random
+from ..registry import PIPELINES
+"""pipeline ops for Activity Net.
+"""
+
+
+@PIPELINES.register()
+class AutoPadding(object):
+ """
+ Sample or Padding frame skeleton feature.
+ Args:
+ window_size: int, temporal size of skeleton feature.
+ random_pad: bool, whether do random padding when frame length < window size. Default: False.
+ """
+
+ def __init__(self, window_size, random_pad=False):
+ self.window_size = window_size
+ self.random_pad = random_pad
+
+ def get_frame_num(self, data):
+ C, T, V, M = data.shape
+ for i in range(T - 1, -1, -1):
+ tmp = np.sum(data[:, i, :, :])
+ if tmp > 0:
+ T = i + 1
+ break
+ return T
+
+ def __call__(self, results):
+ data = results['data']
+
+ C, T, V, M = data.shape
+ T = self.get_frame_num(data)
+ if T == self.window_size:
+ data_pad = data[:, :self.window_size, :, :]
+ elif T < self.window_size:
+ begin = random.randint(
+ 0, self.window_size - T) if self.random_pad else 0
+ data_pad = np.zeros((C, self.window_size, V, M))
+ data_pad[:, begin:begin + T, :, :] = data[:, :T, :, :]
+ else:
+ if self.random_pad:
+ index = np.random.choice(
+ T, self.window_size, replace=False).astype('int64')
+ else:
+ index = np.linspace(0, T, self.window_size).astype("int64")
+ data_pad = data[:, index, :, :]
+
+ results['data'] = data_pad
+ return results
+
+
+@PIPELINES.register()
+class SkeletonNorm(object):
+ """
+ Normalize skeleton feature.
+ Args:
+ aixs: dimensions of vertex coordinate. 2 for (x,y), 3 for (x,y,z). Default: 2.
+ """
+
+ def __init__(self, axis=2, squeeze=False):
+ self.axis = axis
+ self.squeeze = squeeze
+
+ def __call__(self, results):
+ data = results['data']
+
+ # Centralization
+ data = data - data[:, :, 8:9, :]
+ data = data[:self.axis, :, :, :] # get (x,y) from (x,y, acc)
+ C, T, V, M = data.shape
+ if self.squeeze:
+ data = data.reshape((C, T, V)) # M = 1
+
+ results['data'] = data.astype('float32')
+ if 'label' in results:
+ label = results['label']
+ results['label'] = np.expand_dims(label, 0).astype('int64')
+ return results
+
+
+@PIPELINES.register()
+class Iden(object):
+ """
+ Wrapper Pipeline
+ """
+
+ def __init__(self, label_expand=True):
+ self.label_expand = label_expand
+
+ def __call__(self, results):
+ data = results['data']
+ results['data'] = data.astype('float32')
+
+ if 'label' in results and self.label_expand:
+ label = results['label']
+ results['label'] = np.expand_dims(label, 0).astype('int64')
+ return results
diff --git a/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/stgcn.py b/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/stgcn.py
new file mode 100644
index 000000000..ae9ad7048
--- /dev/null
+++ b/Paddle_Industry_Practice_Sample_Library/Figure_Skating/code/stgcn.py
@@ -0,0 +1,323 @@
+# Copyright (c) 2021 PaddlePaddle Authors. All Rights Reserved.
+#
+# Licensed under the Apache License, Version 2.0 (the "License"
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import paddle
+import paddle.nn as nn
+import paddle.nn.functional as F
+import numpy as np
+from ..registry import BACKBONES
+from ..weight_init import weight_init_
+
+
+def zero(x):
+ return 0
+
+
+def iden(x):
+ return x
+
+
+def einsum(x, A):
+ """paddle.einsum will be implemented in release/2.2.
+ """
+ x = x.transpose((0, 2, 3, 1, 4))
+ n, c, t, k, v = x.shape
+ k2, v2, w = A.shape
+ assert (k == k2 and v == v2), "Args of einsum not match!"
+ x = x.reshape((n, c, t, k * v))
+ A = A.reshape((k * v, w))
+ y = paddle.matmul(x, A)
+ return y
+
+
+def get_hop_distance(num_node, edge, max_hop=1):
+ A = np.zeros((num_node, num_node))
+ for i, j in edge:
+ A[j, i] = 1
+ A[i, j] = 1
+
+ # compute hop steps
+ hop_dis = np.zeros((num_node, num_node)) + np.inf
+ transfer_mat = [np.linalg.matrix_power(A, d) for d in range(max_hop + 1)]
+ arrive_mat = (np.stack(transfer_mat) > 0)
+ for d in range(max_hop, -1, -1):
+ hop_dis[arrive_mat[d]] = d
+ return hop_dis
+
+
+def normalize_digraph(A):
+ Dl = np.sum(A, 0)
+ num_node = A.shape[0]
+ Dn = np.zeros((num_node, num_node))
+ for i in range(num_node):
+ if Dl[i] > 0:
+ Dn[i, i] = Dl[i]**(-1)
+ AD = np.dot(A, Dn)
+ return AD
+
+
+class Graph():
+ def __init__(self,
+ layout='openpose',
+ strategy='uniform',
+ max_hop=1,
+ dilation=1):
+ self.max_hop = max_hop
+ self.dilation = dilation
+
+ self.get_edge(layout)
+ self.hop_dis = get_hop_distance(
+ self.num_node, self.edge, max_hop=max_hop)
+ self.get_adjacency(strategy)
+
+ def __str__(self):
+ return self.A
+
+ def get_edge(self, layout):
+ # edge is a list of [child, parent] paris
+
+ if layout == 'fsd10':
+ self.num_node = 25
+ self_link = [(i, i) for i in range(self.num_node)]
+ neighbor_link = [(1, 8), (0, 1), (15, 0), (17, 15), (16, 0),
+ (18, 16), (5, 1), (6, 5), (7, 6), (2, 1), (3, 2),
+ (4, 3), (9, 8), (10, 9), (11, 10), (24, 11),
+ (22, 11), (23, 22), (12, 8), (13, 12), (14, 13),
+ (21, 14), (19, 14), (20, 19)]
+ self.edge = self_link + neighbor_link
+ self.center = 8
+ elif layout == 'ntu-rgb+d':
+ self.num_node = 25
+ self_link = [(i, i) for i in range(self.num_node)]
+ neighbor_1base = [(1, 2), (2, 21), (3, 21), (4, 3), (5, 21),
+ (6, 5), (7, 6), (8, 7), (9, 21), (10, 9),
+ (11, 10), (12, 11), (13, 1), (14, 13), (15, 14),
+ (16, 15), (17, 1), (18, 17), (19, 18), (20, 19),
+ (22, 23), (23, 8), (24, 25), (25, 12)]
+ neighbor_link = [(i - 1, j - 1) for (i, j) in neighbor_1base]
+ self.edge = self_link + neighbor_link
+ self.center = 21 - 1
+ else:
+ raise ValueError("Do Not Exist This Layout.")
+
+ def get_adjacency(self, strategy):
+ valid_hop = range(0, self.max_hop + 1, self.dilation)
+ adjacency = np.zeros((self.num_node, self.num_node))
+ for hop in valid_hop:
+ adjacency[self.hop_dis == hop] = 1
+ normalize_adjacency = normalize_digraph(adjacency)
+
+ if strategy == 'spatial':
+ A = []
+ for hop in valid_hop:
+ a_root = np.zeros((self.num_node, self.num_node))
+ a_close = np.zeros((self.num_node, self.num_node))
+ a_further = np.zeros((self.num_node, self.num_node))
+ for i in range(self.num_node):
+ for j in range(self.num_node):
+ if self.hop_dis[j, i] == hop:
+ if self.hop_dis[j, self.center] == self.hop_dis[
+ i, self.center]:
+ a_root[j, i] = normalize_adjacency[j, i]
+ elif self.hop_dis[j, self.center] > self.hop_dis[
+ i, self.center]:
+ a_close[j, i] = normalize_adjacency[j, i]
+ else:
+ a_further[j, i] = normalize_adjacency[j, i]
+ if hop == 0:
+ A.append(a_root)
+ else:
+ A.append(a_root + a_close)
+ A.append(a_further)
+ A = np.stack(A)
+ self.A = A
+ else:
+ raise ValueError("Do Not Exist This Strategy")
+
+
+class ConvTemporalGraphical(nn.Layer):
+ def __init__(self,
+ in_channels,
+ out_channels,
+ kernel_size,
+ t_kernel_size=1,
+ t_stride=1,
+ t_padding=0,
+ t_dilation=1):
+ super().__init__()
+
+ self.kernel_size = kernel_size
+ self.conv = nn.Conv2D(
+ in_channels,
+ out_channels * kernel_size,
+ kernel_size=(t_kernel_size, 1),
+ padding=(t_padding, 0),
+ stride=(t_stride, 1),
+ dilation=(t_dilation, 1))
+
+ def forward(self, x, A):
+ assert A.shape[0] == self.kernel_size
+
+ x = self.conv(x)
+ n, kc, t, v = x.shape
+ x = x.reshape((n, self.kernel_size, kc // self.kernel_size, t, v))
+ x = einsum(x, A)
+
+ return x, A
+
+
+class st_gcn_block(nn.Layer):
+ def __init__(self,
+ in_channels,
+ out_channels,
+ kernel_size,
+ stride=1,
+ dropout=0,
+ residual=True):
+ super(st_gcn_block, self).__init__()
+
+ assert len(kernel_size) == 2
+ assert kernel_size[0] % 2 == 1
+ padding = ((kernel_size[0] - 1) // 2, 0)
+
+ self.gcn = ConvTemporalGraphical(in_channels, out_channels,
+ kernel_size[1])
+
+ self.tcn = nn.Sequential(
+ nn.BatchNorm2D(out_channels),
+ nn.ReLU(),
+ nn.Conv2D(
+ out_channels,
+ out_channels,
+ (kernel_size[0], 1),
+ (stride, 1),
+ padding, ),
+ nn.BatchNorm2D(out_channels),
+ nn.Dropout(dropout), )
+
+ if not residual:
+ self.residual = zero
+
+ elif (in_channels == out_channels) and (stride == 1):
+ self.residual = iden
+
+ else:
+ self.residual = nn.Sequential(
+ nn.Conv2D(
+ in_channels,
+ out_channels,
+ kernel_size=1,
+ stride=(stride, 1)),
+ nn.BatchNorm2D(out_channels), )
+
+ self.relu = nn.ReLU()
+
+ def forward(self, x, A):
+ res = self.residual(x)
+ x, A = self.gcn(x, A)
+ x = self.tcn(x) + res
+ return self.relu(x), A
+
+
+@BACKBONES.register()
+class STGCN(nn.Layer):
+ """
+ ST-GCN model from:
+ `"Spatial Temporal Graph Convolutional Networks for Skeleton-Based Action Recognition" `_
+ Args:
+ in_channels: int, channels of vertex coordinate. 2 for (x,y), 3 for (x,y,z). Default 2.
+ edge_importance_weighting: bool, whether to use edge attention. Default True.
+ data_bn: bool, whether to use data BatchNorm. Default True.
+ """
+
+ def __init__(self,
+ in_channels=2,
+ edge_importance_weighting=True,
+ data_bn=True,
+ layout='fsd10',
+ strategy='spatial',
+ **kwargs):
+ super(STGCN, self).__init__()
+ self.data_bn = data_bn
+ # load graph
+ self.graph = Graph(
+ layout=layout,
+ strategy=strategy, )
+ A = paddle.to_tensor(self.graph.A, dtype='float32')
+ self.register_buffer('A', A)
+
+ # build networks
+ spatial_kernel_size = A.shape[0]
+ temporal_kernel_size = 9
+ kernel_size = (temporal_kernel_size, spatial_kernel_size)
+ self.data_bn = nn.BatchNorm1D(in_channels *
+ A.shape[1]) if self.data_bn else iden
+ kwargs0 = {k: v for k, v in kwargs.items() if k != 'dropout'}
+ self.st_gcn_networks = nn.LayerList((
+ st_gcn_block(
+ in_channels, 64, kernel_size, 1, residual=False, **kwargs0),
+ st_gcn_block(64, 64, kernel_size, 1, **kwargs),
+ st_gcn_block(64, 64, kernel_size, 1, **kwargs),
+ st_gcn_block(64, 64, kernel_size, 1, **kwargs),
+ st_gcn_block(64, 128, kernel_size, 2, **kwargs),
+ st_gcn_block(128, 128, kernel_size, 1, **kwargs),
+ st_gcn_block(128, 128, kernel_size, 1, **kwargs),
+ st_gcn_block(128, 256, kernel_size, 2, **kwargs),
+ st_gcn_block(256, 256, kernel_size, 1, **kwargs),
+ st_gcn_block(256, 256, kernel_size, 1, **kwargs), ))
+
+ # initialize parameters for edge importance weighting
+ if edge_importance_weighting:
+ self.edge_importance = nn.ParameterList([
+ self.create_parameter(
+ shape=self.A.shape,
+ default_initializer=nn.initializer.Constant(1))
+ for i in self.st_gcn_networks
+ ])
+ else:
+ self.edge_importance = [1] * len(self.st_gcn_networks)
+
+ self.pool = nn.AdaptiveAvgPool2D(output_size=(1, 1))
+
+ def init_weights(self):
+ """Initiate the parameters.
+ """
+ for layer in self.sublayers():
+ if isinstance(layer, nn.Conv2D):
+ weight_init_(layer, 'Normal', mean=0.0, std=0.02)
+ elif isinstance(layer, nn.BatchNorm2D):
+ weight_init_(layer, 'Normal', mean=1.0, std=0.02)
+ elif isinstance(layer, nn.BatchNorm1D):
+ weight_init_(layer, 'Normal', mean=1.0, std=0.02)
+
+ def forward(self, x):
+ # data normalization
+ N, C, T, V, M = x.shape
+ x = x.transpose((0, 4, 3, 1, 2)) # N, M, V, C, T
+ x = x.reshape((N * M, V * C, T))
+ if self.data_bn:
+ x.stop_gradient = False
+ x = self.data_bn(x)
+ x = x.reshape((N, M, V, C, T))
+ x = x.transpose((0, 1, 3, 4, 2)) # N, M, C, T, V
+ x = x.reshape((N * M, C, T, V))
+
+ # forward
+ for gcn, importance in zip(self.st_gcn_networks, self.edge_importance):
+ x, _ = gcn(x, paddle.multiply(self.A, importance))
+
+ x = self.pool(x) # NM,C,T,V --> NM,C,1,1
+ C = x.shape[1]
+ x = paddle.reshape(x, (N, M, C, 1, 1)).mean(axis=1) # N,C,1,1
+ return x
diff --git a/examples/ABClass/README.md b/examples/ABClass/README.md
new file mode 100644
index 000000000..a2c3fa808
--- /dev/null
+++ b/examples/ABClass/README.md
@@ -0,0 +1,633 @@
+# **一、简要介绍**
+ 图像分类，根据各自在图像信息中所反映的不同特征，把不同类别的目标区分开来的图像处理方法。它利用计算机对图像进行定量分析，把图像或图像中的每个像元或区域划归为若干个类别中的某一种，以代替人的视觉判读。
+
+ 本示例简要介绍如何通过飞桨图像识别套件PaddleClas，在飞桨深度学习平台[AI Studio](https://aistudio.baidu.com/aistudio/index)上实现手语字母图像分类，项目连接：[【PaddleClas2.2】英文字母手语识别](https://aistudio.baidu.com/aistudio/projectdetail/2263110)，有关PaddleClas的介绍请见：[PaddleClas](https://github.com/PaddlePaddle/PaddleClas)。
+
+ 在本示例中，使用ResNet50_vd作为骨干网络，开启预训练模型进行微调。
+
+ ResNet系列模型是在2015年提出的，一举在ILSVRC2015比赛中取得冠军，top5错误率为3.57%。该网络创新性的提出了残差结构，通过堆叠多个残差结构从而构建了ResNet网络。实验表明使用残差块可以有效地提升收敛速度和精度。斯坦福大学的Joyce Xu将ResNet称为「真正重新定义了我们看待神经网络的方式」的三大架构之一。由于ResNet卓越的性能，越来越多的来自学术界和工业界学者和工程师对其结构进行了改进，比较出名的有Wide-ResNet, ResNet-vc ,ResNet-vd, Res2Net等。
+

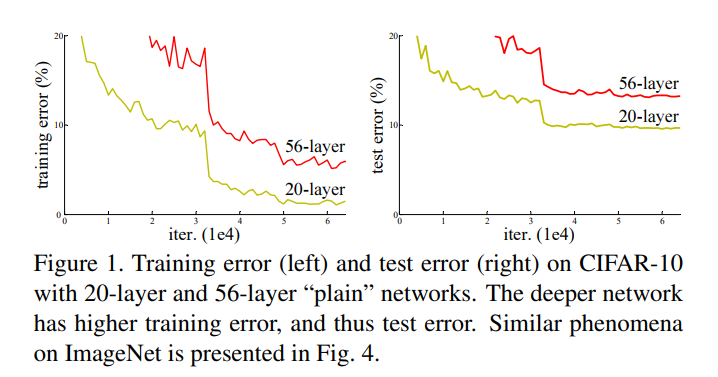

+ 加深网络的深度是能让网络效果变的更好的重要因素，但随着网络的加深，梯度弥散问题会越来越严重，导致网络很难收敛，梯度弥散问题目前有很多的解决办法，包括网络初始标准化，数据标准化以及中间层的标准化（Batch Normalization）等。但除此之外，网络加深还会带来另外一个问题：随着网络加深，网络开始退化，出现训练集准确率下降的现象，如下图
+
+
+
+ 为此，ResNet的作者引入了一种名为“残差学习”的思想：
+
+
+
+ 残差学习的block一共包含两个分支：
+* identity mapping，指的是上图右方曲线，代表自身映射；
+* residual mapping，指的是另一条分支，称为残差映射。
+

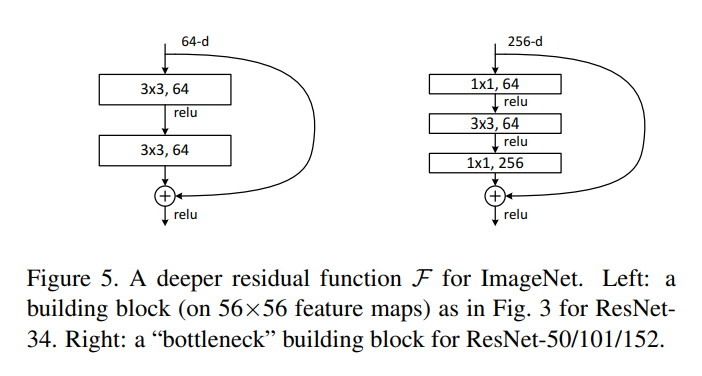

+ 针对不同深度的ResNet，作者提出了两种Residual Block：
+
+
+

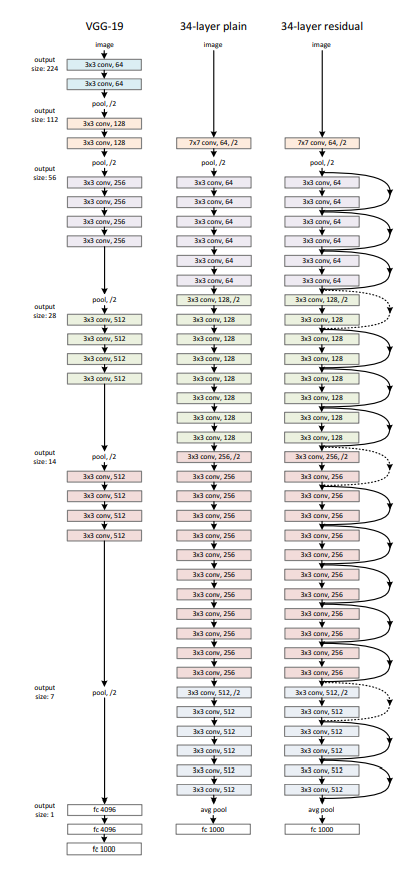

+ 下图为VGG-19，Plain-34(没有使用residual结构)和ResNet-34网络结构对比：
+
+
+

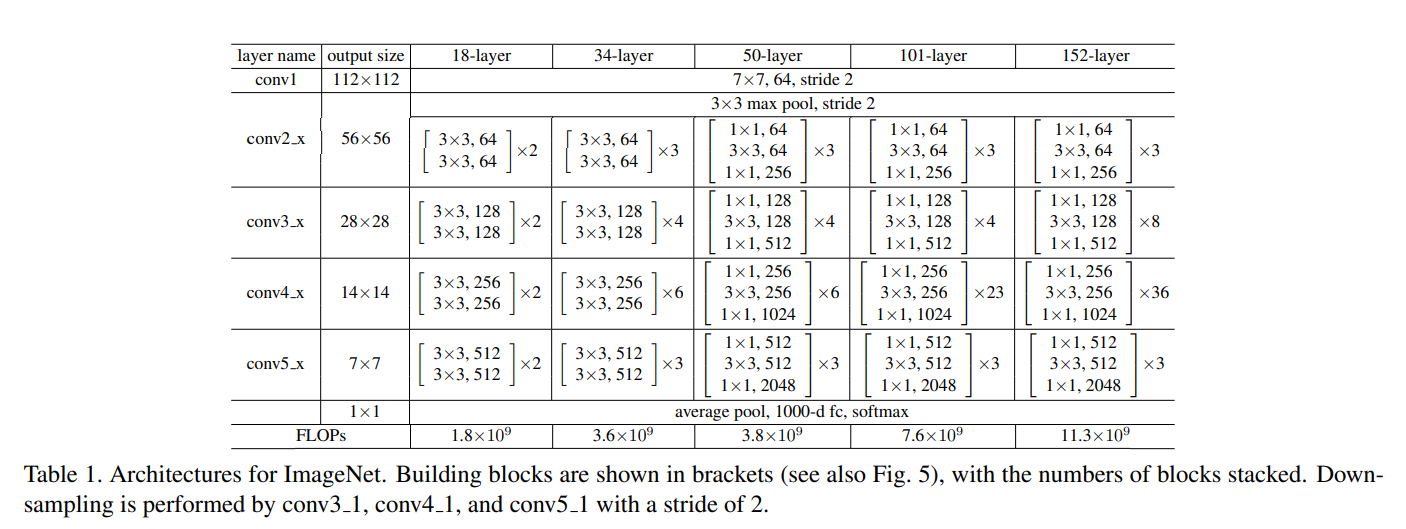

+ 论文一共提出5种ResNet网络，网络参数统计表如下：
+
+
+
+# **二、环境设置**
+
+## 2.1 安装PaddleClas
+
+
+```python
+#安装PaddleClas
+!git clone https://gitee.com/paddlepaddle/PaddleClas.git work/PaddleClas
+```
+
+## 2.2 更新前置
+
+
+```python
+#更新前置(如果时间过长，可以尝试把work/PaddleClas/requirements.txt中的opencv-python==4.4.0.46删去)
+!pip install --upgrade -r work/PaddleClas/requirements.txt -i https://mirror.baidu.com/pypi/simple
+```
+
+## 2.3 导入模块
+
+
+```python
+#导入所需库
+import os
+import random
+from PIL import Image
+import matplotlib.pyplot as plt
+```
+
+# **三、数据集**
+
+## 3.1 准备数据集
+
+ [美国手语字母图像数据集](https://www.kaggle.com/grassknoted/asl-alphabet)，训练数据集包含 87,000 张 200x200 像素的图像，有29个类，其中26个分别为字母A-Z，3个分别为SPACE、DELETE和NOTHING。
+
+ 本数据集已由[bnmvv5](https://aistudio.baidu.com/aistudio/personalcenter/thirdview/71231)上传至AI Studio中：[ASL Alphabet：手语字母表](https://aistudio.baidu.com/aistudio/datasetdetail/99209)
+
+
+```python
+#解压数据集
+!unzip -q data/data99209/ASL_Alphabet.zip -d data/
+```
+
+## 3.2 数据集概览
+
+
+```python
+imgtestroot = 'data/asl_alphabet_test/asl_alphabet_test'
+imglist = os.listdir(imgtestroot)
+imglist.sort()
+plt.figure(figsize=(20,20))
+for num, imgname in enumerate(imglist):
+ imgpath = os.path.join(imgtestroot, imgname)
+ img = Image.open(imgpath)
+ plt.subplot(7,4,num+1)
+ plt.imshow(img)
+ plt.title(imgname)
+ plt.axis('off')
+```
+
+
+
+
+
+## 3.3 标注文件生成
+
+ 有关标注文件的格式请参照：[数据说明](https://github.com/PaddlePaddle/PaddleClas/blob/release/2.2/docs/zh_CN/tutorials/data.md)
+
+ 本项目将数据集按照0.9 : 0.1的比例划分成训练集和验证集，划分前进行乱序操作
+
+```
+# 每一行采用"空格"分隔图像路径与标注
+# 下面是Train.txt中的格式样例
+M/M895.jpg 12
+Z/Z382.jpg 25
+Z/Z1340.jpg 25
+E/E2814.jpg 4
+...
+```
+
+
+```python
+#生成数据集划分TXT(0.9 : 0.1)
+os.makedirs('work/List')
+AllClass = os.listdir("data/asl_alphabet_train/asl_alphabet_train")
+AllClass.sort()
+TrainLIst = []
+EvalList = []
+TrainTXT = open("work/List/Train.txt","w")
+EvalTXT = open("work/List/Eval.txt","w")
+IDMapTXT = open("work/List/IDMap.txt","w")
+for Label, ABClass in enumerate(AllClass):
+ #训练集
+ for number in range(1,2901):
+ TrainLIst.append(ABClass + '/' + ABClass + str(number) + '.jpg ' + str(Label))
+ #验证集
+ for number in range(2901,3001):
+ EvalList.append(ABClass + '/' + ABClass + str(number) + '.jpg ' + str(Label))
+ #类别标记
+ IDMapTXT.write(str(Label) + ' ' + ABClass + '\n')
+random.shuffle(TrainLIst)
+random.shuffle(EvalList)
+TrainTXT.write('\n'.join(TrainLIst))
+EvalTXT.write('\n'.join(EvalList))
+TrainTXT.close()
+EvalTXT.close()
+IDMapTXT.close()
+```
+
+# **四、模型配置**
+
+有关配置文件请参考：[配置说明](https://github.com/PaddlePaddle/PaddleClas/blob/release/2.2/docs/zh_CN/tutorials/config_description.md)
+
+ 记得修改配置文件路径及内容，这里需要修改一下epochs，如果打开了预训练模型进行微调，只需要设置成2-3，如果不使用预训练模型，需要将epochs设置成100多轮
+
+ 此外learning_rate、batch_size和正则化系数请根据网络实际收敛速度自行进行调整，下面给出的是在预训练模型打开的情况下效果尚可的参数
+
+ 因为一共29类故将class_num设置成29
+
+ image_root为之前标注文件中目录的根目录，在cls_label_path中引用标注文件
+
+```
+# global configs
+Global:
+ checkpoints: null
+ pretrained_model: null
+ output_dir: work/output/ #模型保存路径
+ device: gpu
+ save_interval: 1
+ eval_during_train: True
+ eval_interval: 1
+ epochs: 3
+ print_batch_step: 10
+ use_visualdl: False
+ # used for static mode and model export
+ image_shape: [3, 200, 200] #图片输入大小
+ save_inference_dir: work/inference
+
+# model architecture
+Arch:
+ name: ResNet50_vd
+ class_num: 29
+
+# loss function config for traing/eval process
+Loss:
+ Train:
+ - CELoss:
+ weight: 1.0
+ epsilon: 0.1
+ Eval:
+ - CELoss:
+ weight: 1.0
+
+Optimizer:
+ name: Momentum
+ momentum: 0.9
+ lr:
+ name: Cosine
+ learning_rate: 0.01
+ #last0.001
+ regularizer:
+ name: 'L2'
+ coeff: 0.00001
+
+# data loader for train and eval
+DataLoader:
+ Train:
+ dataset:
+ name: ImageNetDataset
+ image_root: data/asl_alphabet_train/asl_alphabet_train
+ cls_label_path: work/List/Train.txt
+ transform_ops:
+ - DecodeImage:
+ to_rgb: True
+ channel_first: False
+ - RandFlipImage:
+ flip_code: 1
+ - NormalizeImage:
+ scale: 1.0/255.0
+ mean: [0.485, 0.456, 0.406]
+ std: [0.229, 0.224, 0.225]
+ order: ''
+ sampler:
+ name: DistributedBatchSampler
+ batch_size: 128
+ drop_last: False
+ shuffle: True
+ loader:
+ num_workers: 0
+ use_shared_memory: True
+ Eval:
+ dataset:
+ name: ImageNetDataset
+ image_root: data/asl_alphabet_train/asl_alphabet_train
+ cls_label_path: work/List/Eval.txt
+ transform_ops:
+ - DecodeImage:
+ to_rgb: True
+ channel_first: False
+ - RandFlipImage:
+ flip_code: 1
+ - NormalizeImage:
+ scale: 1.0/255.0
+ mean: [0.485, 0.456, 0.406]
+ std: [0.229, 0.224, 0.225]
+ order: ''
+ sampler:
+ name: DistributedBatchSampler
+ batch_size: 128
+ drop_last: False
+ shuffle: False
+ loader:
+ num_workers: 0
+ use_shared_memory: True
+
+Infer:
+ infer_imgs: data/asl_alphabet_test/asl_alphabet_test
+ batch_size: 28
+ transforms:
+ - DecodeImage:
+ to_rgb: True
+ channel_first: False
+ - NormalizeImage:
+ scale: 1.0/255.0
+ mean: [0.485, 0.456, 0.406]
+ std: [0.229, 0.224, 0.225]
+ order: ''
+ - ToCHWImage:
+ PostProcess:
+ name: Topk
+ topk: 1
+ class_id_map_file: work/List/IDMap.txt
+
+Metric:
+ Train:
+ Eval:
+ - TopkAcc:
+ topk: [1, 5]
+```
+
+# **五、模型训练**
+
+
+```python
+#开始训练
+!export CUDA_VISIBLE_DEVICES=0
+!python work/PaddleClas/tools/train.py \
+ -o Arch.pretrained=True \
+ -c work/Config/ABClass_ResNet50_vd.yaml
+```
+
+
+```python
+#恢复训练
+!python work/PaddleClas/tools/train.py \
+ -c work/Config/ABClass_ResNet50_vd.yaml \
+ -o Global.checkpoints="work/output/ResNet50_vd/latest"
+```
+
+# **六、模型评估**
+
+
+```python
+#模型评估
+!python3 work/PaddleClas/tools/eval.py \
+ -c work/Config/ABClass_ResNet50_vd.yaml \
+ -o Global.pretrained_model=work/output/ResNet50_vd/best_model
+```
+
+ /home/aistudio/work/PaddleClas/ppcls/arch/backbone/model_zoo/vision_transformer.py:15: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ from collections import Callable
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ from collections import MutableMapping
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ from collections import Iterable, Mapping
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ from collections import Sized
+ [2021/10/01 13:16:40] root INFO:
+ ===========================================================
+ == PaddleClas is powered by PaddlePaddle ! ==
+ ===========================================================
+ == ==
+ == For more info please go to the following website. ==
+ == ==
+ == https://github.com/PaddlePaddle/PaddleClas ==
+ ===========================================================
+
+ [2021/10/01 13:16:40] root INFO: Arch :
+ [2021/10/01 13:16:40] root INFO: class_num : 29
+ [2021/10/01 13:16:40] root INFO: name : ResNet50_vd
+ [2021/10/01 13:16:40] root INFO: DataLoader :
+ [2021/10/01 13:16:40] root INFO: Eval :
+ [2021/10/01 13:16:40] root INFO: dataset :
+ [2021/10/01 13:16:40] root INFO: cls_label_path : work/List/Eval.txt
+ [2021/10/01 13:16:40] root INFO: image_root : data/asl_alphabet_train/asl_alphabet_train
+ [2021/10/01 13:16:40] root INFO: name : ImageNetDataset
+ [2021/10/01 13:16:40] root INFO: transform_ops :
+ [2021/10/01 13:16:40] root INFO: DecodeImage :
+ [2021/10/01 13:16:40] root INFO: channel_first : False
+ [2021/10/01 13:16:40] root INFO: to_rgb : True
+ [2021/10/01 13:16:40] root INFO: RandFlipImage :
+ [2021/10/01 13:16:40] root INFO: flip_code : 1
+ [2021/10/01 13:16:40] root INFO: NormalizeImage :
+ [2021/10/01 13:16:40] root INFO: mean : [0.485, 0.456, 0.406]
+ [2021/10/01 13:16:40] root INFO: order :
+ [2021/10/01 13:16:40] root INFO: scale : 1.0/255.0
+ [2021/10/01 13:16:40] root INFO: std : [0.229, 0.224, 0.225]
+ [2021/10/01 13:16:40] root INFO: loader :
+ [2021/10/01 13:16:40] root INFO: num_workers : 0
+ [2021/10/01 13:16:40] root INFO: use_shared_memory : True
+ [2021/10/01 13:16:40] root INFO: sampler :
+ [2021/10/01 13:16:40] root INFO: batch_size : 128
+ [2021/10/01 13:16:40] root INFO: drop_last : False
+ [2021/10/01 13:16:40] root INFO: name : DistributedBatchSampler
+ [2021/10/01 13:16:40] root INFO: shuffle : False
+ [2021/10/01 13:16:40] root INFO: Train :
+ [2021/10/01 13:16:40] root INFO: dataset :
+ [2021/10/01 13:16:40] root INFO: cls_label_path : work/List/Train.txt
+ [2021/10/01 13:16:40] root INFO: image_root : data/asl_alphabet_train/asl_alphabet_train
+ [2021/10/01 13:16:40] root INFO: name : ImageNetDataset
+ [2021/10/01 13:16:40] root INFO: transform_ops :
+ [2021/10/01 13:16:40] root INFO: DecodeImage :
+ [2021/10/01 13:16:40] root INFO: channel_first : False
+ [2021/10/01 13:16:40] root INFO: to_rgb : True
+ [2021/10/01 13:16:40] root INFO: RandFlipImage :
+ [2021/10/01 13:16:40] root INFO: flip_code : 1
+ [2021/10/01 13:16:40] root INFO: NormalizeImage :
+ [2021/10/01 13:16:40] root INFO: mean : [0.485, 0.456, 0.406]
+ [2021/10/01 13:16:40] root INFO: order :
+ [2021/10/01 13:16:40] root INFO: scale : 1.0/255.0
+ [2021/10/01 13:16:40] root INFO: std : [0.229, 0.224, 0.225]
+ [2021/10/01 13:16:40] root INFO: loader :
+ [2021/10/01 13:16:40] root INFO: num_workers : 0
+ [2021/10/01 13:16:40] root INFO: use_shared_memory : True
+ [2021/10/01 13:16:40] root INFO: sampler :
+ [2021/10/01 13:16:40] root INFO: batch_size : 128
+ [2021/10/01 13:16:40] root INFO: drop_last : False
+ [2021/10/01 13:16:40] root INFO: name : DistributedBatchSampler
+ [2021/10/01 13:16:40] root INFO: shuffle : True
+ [2021/10/01 13:16:40] root INFO: Global :
+ [2021/10/01 13:16:40] root INFO: checkpoints : None
+ [2021/10/01 13:16:40] root INFO: device : gpu
+ [2021/10/01 13:16:40] root INFO: epochs : 200
+ [2021/10/01 13:16:40] root INFO: eval_during_train : True
+ [2021/10/01 13:16:40] root INFO: eval_interval : 1
+ [2021/10/01 13:16:40] root INFO: image_shape : [3, 200, 200]
+ [2021/10/01 13:16:40] root INFO: output_dir : work/output/
+ [2021/10/01 13:16:40] root INFO: pretrained_model : work/output/ResNet50_vd/best_model
+ [2021/10/01 13:16:40] root INFO: print_batch_step : 10
+ [2021/10/01 13:16:40] root INFO: save_inference_dir : work/inference
+ [2021/10/01 13:16:40] root INFO: save_interval : 1
+ [2021/10/01 13:16:40] root INFO: use_visualdl : False
+ [2021/10/01 13:16:40] root INFO: Infer :
+ [2021/10/01 13:16:40] root INFO: PostProcess :
+ [2021/10/01 13:16:40] root INFO: class_id_map_file : work/List/IDMap.txt
+ [2021/10/01 13:16:40] root INFO: name : Topk
+ [2021/10/01 13:16:40] root INFO: topk : 1
+ [2021/10/01 13:16:40] root INFO: batch_size : 28
+ [2021/10/01 13:16:40] root INFO: infer_imgs : data/asl_alphabet_test/asl_alphabet_test
+ [2021/10/01 13:16:40] root INFO: transforms :
+ [2021/10/01 13:16:40] root INFO: DecodeImage :
+ [2021/10/01 13:16:40] root INFO: channel_first : False
+ [2021/10/01 13:16:40] root INFO: to_rgb : True
+ [2021/10/01 13:16:40] root INFO: NormalizeImage :
+ [2021/10/01 13:16:40] root INFO: mean : [0.485, 0.456, 0.406]
+ [2021/10/01 13:16:40] root INFO: order :
+ [2021/10/01 13:16:40] root INFO: scale : 1.0/255.0
+ [2021/10/01 13:16:40] root INFO: std : [0.229, 0.224, 0.225]
+ [2021/10/01 13:16:40] root INFO: ToCHWImage : None
+ [2021/10/01 13:16:40] root INFO: Loss :
+ [2021/10/01 13:16:40] root INFO: Eval :
+ [2021/10/01 13:16:40] root INFO: CELoss :
+ [2021/10/01 13:16:40] root INFO: weight : 1.0
+ [2021/10/01 13:16:40] root INFO: Train :
+ [2021/10/01 13:16:40] root INFO: CELoss :
+ [2021/10/01 13:16:40] root INFO: epsilon : 0.1
+ [2021/10/01 13:16:40] root INFO: weight : 1.0
+ [2021/10/01 13:16:40] root INFO: Metric :
+ [2021/10/01 13:16:40] root INFO: Eval :
+ [2021/10/01 13:16:40] root INFO: TopkAcc :
+ [2021/10/01 13:16:40] root INFO: topk : [1, 5]
+ [2021/10/01 13:16:40] root INFO: Train : None
+ [2021/10/01 13:16:40] root INFO: Optimizer :
+ [2021/10/01 13:16:40] root INFO: lr :
+ [2021/10/01 13:16:40] root INFO: learning_rate : 0.01
+ [2021/10/01 13:16:40] root INFO: name : Cosine
+ [2021/10/01 13:16:40] root INFO: momentum : 0.9
+ [2021/10/01 13:16:40] root INFO: name : Momentum
+ [2021/10/01 13:16:40] root INFO: regularizer :
+ [2021/10/01 13:16:40] root INFO: coeff : 1e-05
+ [2021/10/01 13:16:40] root INFO: name : L2
+ W1001 13:16:40.327559 4786 device_context.cc:404] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 10.1, Runtime API Version: 10.1
+ W1001 13:16:40.331833 4786 device_context.cc:422] device: 0, cuDNN Version: 7.6.
+ [2021/10/01 13:16:45] root INFO: train with paddle 2.1.2 and device CUDAPlace(0)
+ {'CELoss': {'weight': 1.0}}
+ [2021/10/01 13:16:45] root INFO: [Eval][Epoch 0][Iter: 0/23]CELoss: 0.10967, loss: 0.10967, top1: 1.00000, top5: 1.00000, batch_cost: 0.60887s, reader_cost: 0.48905, ips: 210.22458 images/sec
+ [2021/10/01 13:16:49] root INFO: [Eval][Epoch 0][Iter: 10/23]CELoss: 0.10959, loss: 0.10959, top1: 1.00000, top5: 1.00000, batch_cost: 0.34852s, reader_cost: 0.24066, ips: 367.27212 images/sec
+ [2021/10/01 13:16:52] root INFO: [Eval][Epoch 0][Iter: 20/23]CELoss: 0.13111, loss: 0.13111, top1: 0.98438, top5: 1.00000, batch_cost: 0.34876s, reader_cost: 0.24073, ips: 367.01294 images/sec
+ [2021/10/01 13:16:53] root INFO: [Eval][Epoch 0][Avg]CELoss: 0.11529, loss: 0.11529, top1: 0.99724, top5: 1.00000
+
+
+# **七、模型预测**
+
+
+```
+# 把work/PaddleClas/ppcls/engine/trainer.py里第580行的print删掉并改成下面的样子,方便看结果
+# 别忘了添加（import matplotlib.pyplot as plt和from PIL import Image）
+
+plt.figure(figsize=(11,16))
+for num, x in enumerate(result):
+ print(x,end='\n')
+ imgpath = x['file_name']
+ label_names = x['label_names'][0]
+ img = Image.open(imgpath)
+ imgname = imgpath.replace('data/asl_alphabet_test/asl_alphabet_test/','')
+ imgname = imgname.replace('_test.jpg','')
+ title = 'imgname: ' + imgname + '; predict: ' + label_names
+ plt.subplot(10,3,num+1)
+ plt.imshow(img)
+ plt.title(title)
+ plt.axis('off')
+plt.savefig('work/output/testresults.jpg')
+```
+
+
+```python
+#预测效果
+!python work/PaddleClas/tools/infer.py \
+ -c work/Config/ABClass_ResNet50_vd.yaml \
+ -o Infer.infer_imgs=data/asl_alphabet_test/asl_alphabet_test \
+ -o Global.pretrained_model=work/output/ResNet50_vd/best_model
+
+img = Image.open('work/output/testresults.jpg')
+img.show()
+```
+
+ /home/aistudio/work/PaddleClas/ppcls/arch/backbone/model_zoo/vision_transformer.py:15: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ from collections import Callable
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ from collections import MutableMapping
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ from collections import Iterable, Mapping
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ from collections import Sized
+ [2021/10/01 14:32:17] root INFO:
+ ===========================================================
+ == PaddleClas is powered by PaddlePaddle ! ==
+ ===========================================================
+ == ==
+ == For more info please go to the following website. ==
+ == ==
+ == https://github.com/PaddlePaddle/PaddleClas ==
+ ===========================================================
+
+ [2021/10/01 14:32:17] root INFO: Arch :
+ [2021/10/01 14:32:17] root INFO: class_num : 29
+ [2021/10/01 14:32:17] root INFO: name : ResNet50_vd
+ [2021/10/01 14:32:17] root INFO: DataLoader :
+ [2021/10/01 14:32:17] root INFO: Eval :
+ [2021/10/01 14:32:17] root INFO: dataset :
+ [2021/10/01 14:32:17] root INFO: cls_label_path : work/List/Eval.txt
+ [2021/10/01 14:32:17] root INFO: image_root : data/asl_alphabet_train/asl_alphabet_train
+ [2021/10/01 14:32:17] root INFO: name : ImageNetDataset
+ [2021/10/01 14:32:17] root INFO: transform_ops :
+ [2021/10/01 14:32:17] root INFO: DecodeImage :
+ [2021/10/01 14:32:17] root INFO: channel_first : False
+ [2021/10/01 14:32:17] root INFO: to_rgb : True
+ [2021/10/01 14:32:17] root INFO: RandFlipImage :
+ [2021/10/01 14:32:17] root INFO: flip_code : 1
+ [2021/10/01 14:32:17] root INFO: NormalizeImage :
+ [2021/10/01 14:32:17] root INFO: mean : [0.485, 0.456, 0.406]
+ [2021/10/01 14:32:17] root INFO: order :
+ [2021/10/01 14:32:17] root INFO: scale : 1.0/255.0
+ [2021/10/01 14:32:17] root INFO: std : [0.229, 0.224, 0.225]
+ [2021/10/01 14:32:17] root INFO: loader :
+ [2021/10/01 14:32:17] root INFO: num_workers : 0
+ [2021/10/01 14:32:17] root INFO: use_shared_memory : True
+ [2021/10/01 14:32:17] root INFO: sampler :
+ [2021/10/01 14:32:17] root INFO: batch_size : 128
+ [2021/10/01 14:32:17] root INFO: drop_last : False
+ [2021/10/01 14:32:17] root INFO: name : DistributedBatchSampler
+ [2021/10/01 14:32:17] root INFO: shuffle : False
+ [2021/10/01 14:32:17] root INFO: Train :
+ [2021/10/01 14:32:17] root INFO: dataset :
+ [2021/10/01 14:32:17] root INFO: cls_label_path : work/List/Train.txt
+ [2021/10/01 14:32:17] root INFO: image_root : data/asl_alphabet_train/asl_alphabet_train
+ [2021/10/01 14:32:17] root INFO: name : ImageNetDataset
+ [2021/10/01 14:32:17] root INFO: transform_ops :
+ [2021/10/01 14:32:17] root INFO: DecodeImage :
+ [2021/10/01 14:32:17] root INFO: channel_first : False
+ [2021/10/01 14:32:17] root INFO: to_rgb : True
+ [2021/10/01 14:32:17] root INFO: RandFlipImage :
+ [2021/10/01 14:32:17] root INFO: flip_code : 1
+ [2021/10/01 14:32:17] root INFO: NormalizeImage :
+ [2021/10/01 14:32:17] root INFO: mean : [0.485, 0.456, 0.406]
+ [2021/10/01 14:32:17] root INFO: order :
+ [2021/10/01 14:32:17] root INFO: scale : 1.0/255.0
+ [2021/10/01 14:32:17] root INFO: std : [0.229, 0.224, 0.225]
+ [2021/10/01 14:32:17] root INFO: loader :
+ [2021/10/01 14:32:17] root INFO: num_workers : 0
+ [2021/10/01 14:32:17] root INFO: use_shared_memory : True
+ [2021/10/01 14:32:17] root INFO: sampler :
+ [2021/10/01 14:32:17] root INFO: batch_size : 128
+ [2021/10/01 14:32:17] root INFO: drop_last : False
+ [2021/10/01 14:32:17] root INFO: name : DistributedBatchSampler
+ [2021/10/01 14:32:17] root INFO: shuffle : True
+ [2021/10/01 14:32:17] root INFO: Global :
+ [2021/10/01 14:32:17] root INFO: checkpoints : None
+ [2021/10/01 14:32:17] root INFO: device : gpu
+ [2021/10/01 14:32:17] root INFO: epochs : 200
+ [2021/10/01 14:32:17] root INFO: eval_during_train : True
+ [2021/10/01 14:32:17] root INFO: eval_interval : 1
+ [2021/10/01 14:32:17] root INFO: image_shape : [3, 200, 200]
+ [2021/10/01 14:32:17] root INFO: output_dir : work/output/
+ [2021/10/01 14:32:17] root INFO: pretrained_model : work/output/ResNet50_vd/best_model
+ [2021/10/01 14:32:17] root INFO: print_batch_step : 10
+ [2021/10/01 14:32:17] root INFO: save_inference_dir : work/inference
+ [2021/10/01 14:32:17] root INFO: save_interval : 1
+ [2021/10/01 14:32:17] root INFO: use_visualdl : False
+ [2021/10/01 14:32:17] root INFO: Infer :
+ [2021/10/01 14:32:17] root INFO: PostProcess :
+ [2021/10/01 14:32:17] root INFO: class_id_map_file : work/List/IDMap.txt
+ [2021/10/01 14:32:17] root INFO: name : Topk
+ [2021/10/01 14:32:17] root INFO: topk : 1
+ [2021/10/01 14:32:17] root INFO: batch_size : 28
+ [2021/10/01 14:32:17] root INFO: infer_imgs : data/asl_alphabet_test/asl_alphabet_test
+ [2021/10/01 14:32:17] root INFO: transforms :
+ [2021/10/01 14:32:17] root INFO: DecodeImage :
+ [2021/10/01 14:32:17] root INFO: channel_first : False
+ [2021/10/01 14:32:17] root INFO: to_rgb : True
+ [2021/10/01 14:32:17] root INFO: NormalizeImage :
+ [2021/10/01 14:32:17] root INFO: mean : [0.485, 0.456, 0.406]
+ [2021/10/01 14:32:17] root INFO: order :
+ [2021/10/01 14:32:17] root INFO: scale : 1.0/255.0
+ [2021/10/01 14:32:17] root INFO: std : [0.229, 0.224, 0.225]
+ [2021/10/01 14:32:17] root INFO: ToCHWImage : None
+ [2021/10/01 14:32:17] root INFO: Loss :
+ [2021/10/01 14:32:17] root INFO: Eval :
+ [2021/10/01 14:32:17] root INFO: CELoss :
+ [2021/10/01 14:32:17] root INFO: weight : 1.0
+ [2021/10/01 14:32:17] root INFO: Train :
+ [2021/10/01 14:32:17] root INFO: CELoss :
+ [2021/10/01 14:32:17] root INFO: epsilon : 0.1
+ [2021/10/01 14:32:17] root INFO: weight : 1.0
+ [2021/10/01 14:32:17] root INFO: Metric :
+ [2021/10/01 14:32:17] root INFO: Eval :
+ [2021/10/01 14:32:17] root INFO: TopkAcc :
+ [2021/10/01 14:32:17] root INFO: topk : [1, 5]
+ [2021/10/01 14:32:17] root INFO: Train : None
+ [2021/10/01 14:32:17] root INFO: Optimizer :
+ [2021/10/01 14:32:17] root INFO: lr :
+ [2021/10/01 14:32:17] root INFO: learning_rate : 0.01
+ [2021/10/01 14:32:17] root INFO: name : Cosine
+ [2021/10/01 14:32:17] root INFO: momentum : 0.9
+ [2021/10/01 14:32:17] root INFO: name : Momentum
+ [2021/10/01 14:32:17] root INFO: regularizer :
+ [2021/10/01 14:32:17] root INFO: coeff : 1e-05
+ [2021/10/01 14:32:17] root INFO: name : L2
+ W1001 14:32:17.844880 10298 device_context.cc:404] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 10.1, Runtime API Version: 10.1
+ W1001 14:32:17.849160 10298 device_context.cc:422] device: 0, cuDNN Version: 7.6.
+ [2021/10/01 14:32:22] root INFO: train with paddle 2.1.2 and device CUDAPlace(0)
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/tensor/creation.py:125: DeprecationWarning: `np.object` is a deprecated alias for the builtin `object`. To silence this warning, use `object` by itself. Doing this will not modify any behavior and is safe.
+ Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
+ if data.dtype == np.object:
+ {'class_ids': [0], 'scores': [0.8845], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/A_test.jpg', 'label_names': ['A']}
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2349: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ if isinstance(obj, collections.Iterator):
+ /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2366: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
+ return list(data) if isinstance(data, collections.MappingView) else data
+ {'class_ids': [1], 'scores': [0.89221], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/B_test.jpg', 'label_names': ['B']}
+ {'class_ids': [2], 'scores': [0.90011], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/C_test.jpg', 'label_names': ['C']}
+ {'class_ids': [3], 'scores': [0.90496], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/D_test.jpg', 'label_names': ['D']}
+ {'class_ids': [4], 'scores': [0.89183], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/E_test.jpg', 'label_names': ['E']}
+ {'class_ids': [5], 'scores': [0.89325], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/F_test.jpg', 'label_names': ['F']}
+ {'class_ids': [6], 'scores': [0.89952], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/G_test.jpg', 'label_names': ['G']}
+ {'class_ids': [7], 'scores': [0.90223], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/H_test.jpg', 'label_names': ['H']}
+ {'class_ids': [8], 'scores': [0.90036], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/I_test.jpg', 'label_names': ['I']}
+ {'class_ids': [9], 'scores': [0.88778], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/J_test.jpg', 'label_names': ['J']}
+ {'class_ids': [10], 'scores': [0.89786], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/K_test.jpg', 'label_names': ['K']}
+ {'class_ids': [11], 'scores': [0.90049], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/L_test.jpg', 'label_names': ['L']}
+ {'class_ids': [12], 'scores': [0.90034], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/M_test.jpg', 'label_names': ['M']}
+ {'class_ids': [13], 'scores': [0.90773], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/N_test.jpg', 'label_names': ['N']}
+ {'class_ids': [14], 'scores': [0.90272], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/O_test.jpg', 'label_names': ['O']}
+ {'class_ids': [15], 'scores': [0.89565], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/P_test.jpg', 'label_names': ['P']}
+ {'class_ids': [16], 'scores': [0.92907], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/Q_test.jpg', 'label_names': ['Q']}
+ {'class_ids': [17], 'scores': [0.9], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/R_test.jpg', 'label_names': ['R']}
+ {'class_ids': [18], 'scores': [0.88346], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/S_test.jpg', 'label_names': ['S']}
+ {'class_ids': [19], 'scores': [0.92621], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/T_test.jpg', 'label_names': ['T']}
+ {'class_ids': [20], 'scores': [0.90095], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/U_test.jpg', 'label_names': ['U']}
+ {'class_ids': [21], 'scores': [0.88883], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/V_test.jpg', 'label_names': ['V']}
+ {'class_ids': [22], 'scores': [0.8957], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/W_test.jpg', 'label_names': ['W']}
+ {'class_ids': [23], 'scores': [0.88814], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/X_test.jpg', 'label_names': ['X']}
+ {'class_ids': [24], 'scores': [0.90919], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/Y_test.jpg', 'label_names': ['Y']}
+ {'class_ids': [25], 'scores': [0.90121], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/Z_test.jpg', 'label_names': ['Z']}
+ {'class_ids': [27], 'scores': [0.88753], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/nothing_test.jpg', 'label_names': ['nothing']}
+ {'class_ids': [28], 'scores': [0.89806], 'file_name': 'data/asl_alphabet_test/asl_alphabet_test/space_test.jpg', 'label_names': ['space']}
+
+
+
+
diff --git a/examples/ABClass/output_13_0.png b/examples/ABClass/output_13_0.png
new file mode 100644
index 000000000..d4973ed49
Binary files /dev/null and b/examples/ABClass/output_13_0.png differ
diff --git a/examples/ABClass/output_27_1.png b/examples/ABClass/output_27_1.png
new file mode 100644
index 000000000..8ac2cc482
Binary files /dev/null and b/examples/ABClass/output_27_1.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/README.md b/examples/Pedestrian_Detection_and_Tracking/README.md
new file mode 100644
index 000000000..206bab12f
--- /dev/null
+++ b/examples/Pedestrian_Detection_and_Tracking/README.md
@@ -0,0 +1,207 @@
+# 人流量统计/人体检测
+
+## 1. 项目说明
+
+本案例面向人流量统计/人体检测等场景，提供基于PaddleDetection的解决方案，希望通过梳理优化模型精度和性能的思路帮助用户更高效的解决实际问题。
+
+本项目AI Studio链接：https://aistudio.baidu.com/aistudio/projectdetail/2421822
+
+应用场景：静态场景下的人员计数和动态场景下的人流量统计
+
+
+
+业务难点：
+
+* 遮挡重识别问题。场景中行人可能比较密集，人与人之间存在遮挡问题。这可能会导致误检、漏检问题。同时，对遮挡后重新出现的行人进行准确的重识别也是一个比较复杂的问题。容易出现ID切换问题。
+
+* 行人检测的实时性。在实际应用中，往往对行人检测的处理速度有一定要求。
+
+
+
+## 2. 数据准备
+
+### 训练数据集
+
+请参照 [数据准备文档](https://github.com/PaddlePaddle/PaddleDetection/blob/release/2.2/docs/tutorials/PrepareMOTDataSet_cn.md) 去下载并准备好所有的数据集，包括 Caltech Pedestrian, CityPersons, CHUK-SYSU, PRW, ETHZ, MOT17和MOT16。训练时，我们采用前六个数据集，共 53694 张已标注好的数据集用于训练。MOT16作为评测数据集。所有的行人都有检测框标签，部分有ID标签。如果您想使用这些数据集，请遵循他们的License。对数据集的详细介绍参见：[数据集介绍](dataset.md)
+
+### 数据格式
+
+上述数据集都遵循以下结构：
+
+```
+Caltech
+ |——————images
+ | └——————00001.jpg
+ | |—————— ...
+ | └——————0000N.jpg
+ └——————labels_with_ids
+ └——————00001.txt
+ |—————— ...
+ └——————0000N.txt
+MOT17
+ |——————images
+ | └——————train
+ | └——————test
+ └——————labels_with_ids
+ └——————train
+```
+
+所有数据集的标注是以统一数据格式提供的。各个数据集中每张图片都有相应的标注文本。给定一个图像路径，可以通过将字符串`images`替换为 `labels_with_ids`并将 `.jpg`替换为`.txt`来生成标注文本路径。在标注文本中，每行都描述一个边界框，格式如下：
+
+```
+[class] [identity] [x_center] [y_center] [width] [height]
+```
+
+注意：
+
+* `class`为`0`，目前仅支持单类别多目标跟踪。
+* `identity`是从`1`到`num_identifies`的整数(`num_identifies`是数据集中不同物体实例的总数)，如果此框没有`identity`标注，则为`-1`。
+* `[x_center] [y_center] [width] [height]`是中心点坐标和宽高，它们的值是基于图片的宽度/高度进行标准化的，因此值为从0到1的浮点数。
+
+### 数据集目录
+
+首先按照以下命令下载`image_lists.zip`并解压放在`dataset/mot`目录下：
+
+```bash
+wget https://dataset.bj.bcebos.com/mot/image_lists.zip
+```
+
+然后依次下载各个数据集并解压，最终目录为：
+
+```
+dataset/mot
+ |——————image_lists
+ |——————caltech.10k.val
+ |——————caltech.all
+ |——————caltech.train
+ |——————caltech.val
+ |——————citypersons.train
+ |——————citypersons.val
+ |——————cuhksysu.train
+ |——————cuhksysu.val
+ |——————eth.train
+ |——————mot15.train
+ |——————mot16.train
+ |——————mot17.train
+ |——————mot20.train
+ |——————prw.train
+ |——————prw.val
+ |——————Caltech
+ |——————Cityscapes
+ |——————CUHKSYSU
+ |——————ETHZ
+ |——————MOT15
+ |——————MOT16
+ |——————MOT17
+ |——————PRW
+```
+
+
+
+### 调优数据集
+
+在进行调优时，我们采用 Caltech Pedestrian, CityPersons, CHUK-SYSU, PRW, ETHZ和MOT17中一半的数据集，使用MOT17另一半数据集作为评测数据集。调优时和训练时使用的数据集不同，主要是因为MOT官网的测试集榜单提交流程比较复杂，这种数据集的使用方式也是学术界慢慢摸索出的做消融实验的方法。调优时使用的训练数据共 51035 张。
+
+
+
+## 3. 模型选择
+
+PaddleDetection对于多目标追踪算法主要提供了三种模型，DeepSORT、JDE和FairMOT。
+
+- [DeepSORT](https://arxiv.org/abs/1812.00442) (Deep Cosine Metric Learning SORT) 扩展了原有的 [SORT](https://arxiv.org/abs/1703.07402) (Simple Online and Realtime Tracking) 算法，增加了一个CNN模型用于在检测器限定的人体部分图像中提取特征，在深度外观描述的基础上整合外观信息，将检出的目标分配和更新到已有的对应轨迹上即进行一个ReID重识别任务。DeepSORT所需的检测框可以由任意一个检测器来生成，然后读入保存的检测结果和视频图片即可进行跟踪预测。ReID模型此处选择 [PaddleClas](https://github.com/PaddlePaddle/PaddleClas) 提供的`PCB+Pyramid ResNet101`模型。
+- [JDE](https://arxiv.org/abs/1909.12605) (Joint Detection and Embedding) 是在一个单一的共享神经网络中同时学习目标检测任务和embedding任务，并同时输出检测结果和对应的外观embedding匹配的算法。JDE原论文是基于Anchor Base的YOLOv3检测器新增加一个ReID分支学习embedding，训练过程被构建为一个多任务联合学习问题，兼顾精度和速度。
+- [FairMOT](https://arxiv.org/abs/2004.01888) 以Anchor Free的CenterNet检测器为基础，克服了Anchor-Based的检测框架中anchor和特征不对齐问题，深浅层特征融合使得检测和ReID任务各自获得所需要的特征，并且使用低维度ReID特征，提出了一种由两个同质分支组成的简单baseline来预测像素级目标得分和ReID特征，实现了两个任务之间的公平性，并获得了更高水平的实时多目标跟踪精度。
+
+综合精度和速度，这里我们选择了FairMOT算法进行人流量统计/人体检测。
+
+
+
+## 4. 模型训练
+
+下载PaddleDetection
+
+```bash
+git clone https://github.com/PaddlePaddle/PaddleDetection.git
+```
+
+**说明：** 本实验使用**PaddleDetection release/2.2**，如遇PaddleDetection更新训练效果出现变动，可尝试下载PaddleDetection 2.2版本进行实验。
+
+在训练前先正确安装PaddleDetection所需依赖：
+
+```bash
+cd PaddleDetection/
+pip install -r requirements.txt
+```
+
+运行如下代码开始训练模型：
+
+使用两个GPU开启训练
+
+```bash
+python -m paddle.distributed.launch --log_dir=./fairmot_dla34_30e_1088x608/ --gpus 0,1 tools/train.py -c configs/mot/fairmot/fairmot_dla34_30e_1088x608.yml
+```
+
+
+
+## 5. 模型评估
+
+FairMOT使用单张GPU通过如下命令一键式启动评估：
+
+```bash
+CUDA_VISIBLE_DEVICES=0 python tools/eval_mot.py -c configs/mot/fairmot/fairmot_dla34_30e_1088x608.yml -o weights=output/fairmot_dla34_30e_1088x608/model_final.pdparams
+```
+
+**注意:** 默认评估的是MOT-16 Train Set数据集，如需换评估数据集可参照以下代码修改`configs/datasets/mot.yml`，修改`data_root`：
+
+```bash
+EvalMOTDataset:
+ !MOTImageFolder
+ dataset_dir: dataset/mot
+ data_root: MOT16/images/train
+ keep_ori_im: False # set True if save visualization images or video
+```
+
+
+
+## 6. 模型优化(进阶)
+
+具体内容参见[模型优化文档](./improvements.md)。
+
+
+
+## 7. 模型预测
+
+使用单个GPU通过如下命令预测一个视频，并保存为视频
+
+```bash
+# 预测一个视频
+CUDA_VISIBLE_DEVICES=0 python tools/infer_mot.py -c configs/mot/fairmot/fairmot_dla34_30e_1088x608.yml -o weights=https://paddledet.bj.bcebos.com/models/mot/fairmot_dla34_30e_1088x608.pdparams --video_file={your video name}.mp4 --frame_rate=20 --save_videos
+```
+
+使用单个GPU通过如下命令预测一个图片文件夹，并保存为视频
+
+```bash
+# 预测一个图片文件夹
+CUDA_VISIBLE_DEVICES=0 python tools/infer_mot.py -c configs/mot/fairmot/fairmot_dla34_30e_1088x608.yml -o weights=https://paddledet.bj.bcebos.com/models/mot/fairmot_dla34_30e_1088x608.pdparams --image_dir={your infer images folder} --save_videos
+```
+
+**注意:** 请先确保已经安装了[ffmpeg](https://ffmpeg.org/ffmpeg.html), Linux(Ubuntu)平台可以直接用以下命令安装：`apt-get update && apt-get install -y ffmpeg`。`--frame_rate`表示视频的帧率，表示每秒抽取多少帧，可以自行设置，默认为-1表示会使用OpenCV读取的视频帧率。
+
+
+
+## 8. 模型导出
+
+```bash
+CUDA_VISIBLE_DEVICES=0 python tools/export_model.py -c configs/mot/fairmot/fairmot_dla34_30e_1088x608.yml -o weights=https://paddledet.bj.bcebos.com/models/mot/fairmot_dla34_30e_1088x608.pdparams
+```
+
+
+
+## 9. 模型上线选择
+
+
+
+## 引用
+
+
+
diff --git a/examples/Pedestrian_Detection_and_Tracking/code/centernet_fpn_attention.py b/examples/Pedestrian_Detection_and_Tracking/code/centernet_fpn_attention.py
new file mode 100644
index 000000000..c6eca57e4
--- /dev/null
+++ b/examples/Pedestrian_Detection_and_Tracking/code/centernet_fpn_attention.py
@@ -0,0 +1,303 @@
+# Copyright (c) 2021 PaddlePaddle Authors. All Rights Reserved.
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import numpy as np
+import math
+import paddle
+import paddle.nn as nn
+from paddle.nn.initializer import KaimingUniform
+from ppdet.core.workspace import register, serializable
+from ppdet.modeling.layers import ConvNormLayer
+from ..shape_spec import ShapeSpec
+
+
+import paddle.nn.functional as F
+# attention
+
+# SGE attention
+class BasicConv(nn.Layer):
+ def __init__(self, in_planes, out_planes, kernel_size, stride=1, padding=0, dilation=1, groups=1, relu=True, bn=True, bias_attr=False):
+ super(BasicConv, self).__init__()
+ self.out_channels = out_planes
+ self.conv = nn.Conv2D(in_planes, out_planes, kernel_size=kernel_size, stride=stride, padding=padding, dilation=dilation, groups=groups, bias_attr=bias_attr)
+ self.bn = nn.BatchNorm2D(out_planes, epsilon=1e-5, momentum=0.01, weight_attr=False, bias_attr=False) if bn else None
+ self.relu = nn.ReLU() if relu else None
+
+ def forward(self, x):
+ x = self.conv(x)
+ if self.bn is not None:
+ x = self.bn(x)
+ if self.relu is not None:
+ x = self.relu(x)
+ return x
+
+
+class ChannelPool(nn.Layer):
+ def forward(self, x):
+ return paddle.concat((paddle.max(x,1).unsqueeze(1), paddle.mean(x,1).unsqueeze(1)), axis=1)
+
+
+class SpatialGate(nn.Layer):
+ def __init__(self):
+ super(SpatialGate, self).__init__()
+ kernel_size = 7
+ self.compress = ChannelPool()
+ self.spatial = BasicConv(2, 1, kernel_size, stride=1, padding=(kernel_size-1) // 2, relu=False)
+ print(f'************************************ use SpatialGate ************************************')
+
+ def forward(self, x):
+ x_compress = self.compress(x)
+ x_out = self.spatial(x_compress)
+ scale = F.sigmoid(x_out) # broadcasting
+ return x * scale
+
+
+# used by SANN_Attention
+def autopad(k, p=None): # kernel, padding
+ # Pad to 'same'
+ if p is None:
+ p = k // 2 if isinstance(k, int) else [x // 2 for x in k] # auto-pad
+ return p
+
+
+class Conv(nn.Layer):
+ # Standard convolution
+ def __init__(self, c1, c2, k=1, s=1, p=None, g=1, act=True): # ch_in, ch_out, kernel, stride, padding, groups
+ super(Conv, self).__init__()
+ self.conv = nn.Conv2D(c1, c2, k, s, autopad(k, p), groups=g, bias_attr=False)
+ self.bn = nn.BatchNorm2D(c2)
+ self.act = nn.LeakyReLU(0.1) if act else nn.Identity()
+
+ def forward(self, x):
+ return self.act(self.bn(self.conv(x)))
+
+ def fuseforward(self, x):
+ return self.act(self.conv(x))
+
+
+class SANN_Attention(nn.Layer):
+ def __init__(self, k_size = 3, ch = 64, s_state = False, c_state = False):
+ super(SANN_Attention, self).__init__()
+ print(f'************************************use SANN_Attention s_state => {s_state} -- c_state => {c_state}')
+ self.avg_pool = nn.AdaptiveAvgPool2D(1)
+ self.max_pool = nn.AdaptiveAvgPool2D(1)
+ self.sigmoid = nn.Sigmoid()
+ self.s_state = s_state
+ self.c_state = c_state
+
+ if c_state:
+ self.c_attention = nn.Sequential(nn.Conv1D(1, 1, kernel_size=k_size, padding=(k_size - 1) // 2, bias_attr=False),
+ nn.LayerNorm([1, ch]),
+ nn.LeakyReLU(0.3),
+ nn.Linear(ch, ch, bias_attr=False))
+
+ if s_state:
+ self.conv_s = nn.Sequential(Conv(ch, ch // 4, k=1))
+ self.s_attention = nn.Conv2D(2, 1, 7, padding=3, bias_attr=False)
+
+ def forward(self, x):
+ # x: input features with shape [b, c, h, w]
+ b, c, h, w = x.shape
+
+ # channel_attention
+ if self.c_state:
+ y_avg = self.avg_pool(x)
+ y_max = self.max_pool(x)
+ y_c = self.c_attention(y_avg.squeeze(-1).transpose((0,2,1))).transpose((0,2,1)).unsqueeze(-1)+\
+ self.c_attention(y_max.squeeze(-1).transpose((0,2,1))).transpose((0,2,1)).unsqueeze(-1)
+ y_c = self.sigmoid(y_c)
+
+ #spatial_attention
+ if self.s_state:
+ x_s = self.conv_s(x)
+ avg_out = paddle.mean(x_s, axis=1, keepdim=True)
+ max_out = paddle.max(x_s, axis=1, keepdim=True)
+ y_s = paddle.concat([avg_out, max_out], axis=1)
+ y_s = self.sigmoid(self.s_attention(y_s))
+
+ if self.c_state and self.s_state:
+ y = x * y_s * y_c + x
+ elif self.c_state:
+ y = x * y_c + x
+ elif self.s_state:
+ y = x * y_s + x
+ else:
+ y = x
+ return y
+
+
+def fill_up_weights(up):
+ weight = up.weight
+ f = math.ceil(weight.shape[2] / 2)
+ c = (2 * f - 1 - f % 2) / (2. * f)
+ for i in range(weight.shape[2]):
+ for j in range(weight.shape[3]):
+ weight[0, 0, i, j] = \
+ (1 - math.fabs(i / f - c)) * (1 - math.fabs(j / f - c))
+ for c in range(1, weight.shape[0]):
+ weight[c, 0, :, :] = weight[0, 0, :, :]
+
+
+class IDAUp(nn.Layer):
+ def __init__(self, ch_ins, ch_out, up_strides, dcn_v2=True):
+ super(IDAUp, self).__init__()
+ for i in range(1, len(ch_ins)):
+ ch_in = ch_ins[i]
+ up_s = int(up_strides[i])
+ proj = nn.Sequential(
+ ConvNormLayer(
+ ch_in,
+ ch_out,
+ filter_size=3,
+ stride=1,
+ use_dcn=dcn_v2,
+ bias_on=dcn_v2,
+ norm_decay=None,
+ dcn_lr_scale=1.,
+ dcn_regularizer=None),
+ nn.ReLU())
+ node = nn.Sequential(
+ ConvNormLayer(
+ ch_out,
+ ch_out,
+ filter_size=3,
+ stride=1,
+ use_dcn=dcn_v2,
+ bias_on=dcn_v2,
+ norm_decay=None,
+ dcn_lr_scale=1.,
+ dcn_regularizer=None),
+ nn.ReLU())
+
+ param_attr = paddle.ParamAttr(initializer=KaimingUniform())
+ up = nn.Conv2DTranspose(
+ ch_out,
+ ch_out,
+ kernel_size=up_s * 2,
+ weight_attr=param_attr,
+ stride=up_s,
+ padding=up_s // 2,
+ groups=ch_out,
+ bias_attr=False)
+ # TODO: uncomment fill_up_weights
+ #fill_up_weights(up)
+ setattr(self, 'proj_' + str(i), proj)
+ setattr(self, 'up_' + str(i), up)
+ setattr(self, 'node_' + str(i), node)
+
+ def forward(self, inputs, start_level, end_level):
+ for i in range(start_level + 1, end_level):
+ upsample = getattr(self, 'up_' + str(i - start_level))
+ project = getattr(self, 'proj_' + str(i - start_level))
+
+ inputs[i] = project(inputs[i])
+ inputs[i] = upsample(inputs[i])
+ node = getattr(self, 'node_' + str(i - start_level))
+ inputs[i] = node(paddle.add(inputs[i], inputs[i - 1]))
+
+
+class DLAUp(nn.Layer):
+ def __init__(self, start_level, channels, scales, ch_in=None, dcn_v2=True):
+ super(DLAUp, self).__init__()
+ self.start_level = start_level
+ if ch_in is None:
+ ch_in = channels
+ self.channels = channels
+ channels = list(channels)
+ scales = np.array(scales, dtype=int)
+ for i in range(len(channels) - 1):
+ j = -i - 2
+ setattr(
+ self,
+ 'ida_{}'.format(i),
+ IDAUp(
+ ch_in[j:],
+ channels[j],
+ scales[j:] // scales[j],
+ dcn_v2=dcn_v2))
+ scales[j + 1:] = scales[j]
+ ch_in[j + 1:] = [channels[j] for _ in channels[j + 1:]]
+
+ def forward(self, inputs):
+ out = [inputs[-1]] # start with 32
+ for i in range(len(inputs) - self.start_level - 1):
+ ida = getattr(self, 'ida_{}'.format(i))
+ ida(inputs, len(inputs) - i - 2, len(inputs))
+ out.insert(0, inputs[-1])
+ return out
+
+
+@register
+@serializable
+class CenterNetDLAFPN(nn.Layer):
+ """
+ Args:
+ in_channels (list): number of input feature channels from backbone.
+ [16, 32, 64, 128, 256, 512] by default, means the channels of DLA-34
+ down_ratio (int): the down ratio from images to heatmap, 4 by default
+ last_level (int): the last level of input feature fed into the upsamplng block
+ out_channel (int): the channel of the output feature, 0 by default means
+ the channel of the input feature whose down ratio is `down_ratio`
+ dcn_v2 (bool): whether use the DCNv2, true by default
+
+ """
+
+ def __init__(self,
+ in_channels,
+ down_ratio=4,
+ last_level=5,
+ out_channel=0,
+ dcn_v2=True):
+ super(CenterNetDLAFPN, self).__init__()
+ self.first_level = int(np.log2(down_ratio))
+ self.down_ratio = down_ratio
+ self.last_level = last_level
+ scales = [2**i for i in range(len(in_channels[self.first_level:]))]
+ self.dla_up = DLAUp(
+ self.first_level,
+ in_channels[self.first_level:],
+ scales,
+ dcn_v2=dcn_v2)
+ self.out_channel = out_channel
+ if out_channel == 0:
+ self.out_channel = in_channels[self.first_level]
+ self.ida_up = IDAUp(
+ in_channels[self.first_level:self.last_level],
+ self.out_channel,
+ [2**i for i in range(self.last_level - self.first_level)],
+ dcn_v2=dcn_v2)
+
+ self.attention = SpatialGate()
+ #self.attention = SANN_Attention(c_state = False, s_state = True) # spatial_attention
+
+ @classmethod
+ def from_config(cls, cfg, input_shape):
+ return {'in_channels': [i.channels for i in input_shape]}
+
+ def forward(self, body_feats):
+ dla_up_feats = self.dla_up(body_feats)
+
+ ida_up_feats = []
+ for i in range(self.last_level - self.first_level):
+ ida_up_feats.append(dla_up_feats[i].clone())
+
+ self.ida_up(ida_up_feats, 0, len(ida_up_feats))
+
+ feat = ida_up_feats[-1]
+ feat = self.attention(feat)
+ return feat
+
+ @property
+ def out_shape(self):
+ return [ShapeSpec(channels=self.out_channel, stride=self.down_ratio)]
diff --git a/examples/Pedestrian_Detection_and_Tracking/code/centernet_head_iou_head.py b/examples/Pedestrian_Detection_and_Tracking/code/centernet_head_iou_head.py
new file mode 100644
index 000000000..f67c84439
--- /dev/null
+++ b/examples/Pedestrian_Detection_and_Tracking/code/centernet_head_iou_head.py
@@ -0,0 +1,232 @@
+# Copyright (c) 2021 PaddlePaddle Authors. All Rights Reserved.
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import math
+import paddle
+import paddle.nn as nn
+import paddle.nn.functional as F
+from paddle.nn.initializer import KaimingUniform
+from ppdet.core.workspace import register
+from ppdet.modeling.losses import CTFocalLoss, GIoULoss, IouLoss
+
+
+class ConvLayer(nn.Layer):
+ def __init__(self,
+ ch_in,
+ ch_out,
+ kernel_size,
+ stride=1,
+ padding=0,
+ dilation=1,
+ groups=1,
+ bias=False):
+ super(ConvLayer, self).__init__()
+ bias_attr = False
+ fan_in = ch_in * kernel_size**2
+ bound = 1 / math.sqrt(fan_in)
+ param_attr = paddle.ParamAttr(initializer=KaimingUniform())
+ if bias:
+ bias_attr = paddle.ParamAttr(
+ initializer=nn.initializer.Uniform(-bound, bound))
+ self.conv = nn.Conv2D(
+ in_channels=ch_in,
+ out_channels=ch_out,
+ kernel_size=kernel_size,
+ stride=stride,
+ padding=padding,
+ dilation=dilation,
+ groups=groups,
+ weight_attr=param_attr,
+ bias_attr=bias_attr)
+
+ def forward(self, inputs):
+ out = self.conv(inputs)
+
+ return out
+
+
+@register
+class CenterNetHead(nn.Layer):
+ """
+ Args:
+ in_channels (int): the channel number of input to CenterNetHead.
+ num_classes (int): the number of classes, 80 by default.
+ head_planes (int): the channel number in all head, 256 by default.
+ heatmap_weight (float): the weight of heatmap loss, 1 by default.
+ regress_ltrb (bool): whether to regress left/top/right/bottom or
+ width/height for a box, true by default
+ size_weight (float): the weight of box size loss, 0.1 by default.
+ offset_weight (float): the weight of center offset loss, 1 by default.
+
+ """
+
+ __shared__ = ['num_classes']
+
+ def __init__(self,
+ in_channels,
+ num_classes=80,
+ head_planes=256,
+ heatmap_weight=1,
+ regress_ltrb=True,
+ size_weight=0.1,
+ offset_weight=1):
+ super(CenterNetHead, self).__init__()
+ self.weights = {
+ 'heatmap': heatmap_weight,
+ 'size': size_weight,
+ 'iou': size_weight,
+ 'offset': offset_weight
+ }
+ self.heatmap = nn.Sequential(
+ ConvLayer(
+ in_channels, head_planes, kernel_size=3, padding=1, bias=True),
+ nn.ReLU(),
+ ConvLayer(
+ head_planes,
+ num_classes,
+ kernel_size=1,
+ stride=1,
+ padding=0,
+ bias=True))
+ self.heatmap[2].conv.bias[:] = -2.19
+ self.size = nn.Sequential(
+ ConvLayer(
+ in_channels, head_planes, kernel_size=3, padding=1, bias=True),
+ nn.ReLU(),
+ ConvLayer(
+ head_planes,
+ 4 if regress_ltrb else 2,
+ kernel_size=1,
+ stride=1,
+ padding=0,
+ bias=True))
+ self.iou = nn.Sequential(
+ ConvLayer(
+ in_channels, head_planes, kernel_size=3, padding=1, bias=True),
+ nn.ReLU(),
+ ConvLayer(
+ head_planes,
+ 4 if regress_ltrb else 2,
+ kernel_size=1,
+ stride=1,
+ padding=0,
+ bias=True))
+ self.offset = nn.Sequential(
+ ConvLayer(
+ in_channels, head_planes, kernel_size=3, padding=1, bias=True),
+ nn.ReLU(),
+ ConvLayer(
+ head_planes, 2, kernel_size=1, stride=1, padding=0, bias=True))
+ self.focal_loss = CTFocalLoss()
+ self.iou_loss = GIoULoss(reduction='sum')
+
+ @classmethod
+ def from_config(cls, cfg, input_shape):
+ if isinstance(input_shape, (list, tuple)):
+ input_shape = input_shape[0]
+ return {'in_channels': input_shape.channels}
+
+ def forward(self, feat, inputs):
+ heatmap = self.heatmap(feat)
+ size = self.size(feat)
+ iou = self.iou(feat)
+ offset = self.offset(feat)
+ if self.training:
+ loss = self.get_loss(heatmap, size, iou, offset, self.weights, inputs)
+ return loss
+ else:
+ heatmap = F.sigmoid(heatmap)
+ return {'heatmap': heatmap, 'size': size, 'iou':iou, 'offset': offset}
+
+ def get_loss(self, heatmap, size, iou, offset, weights, inputs):
+ heatmap_target = inputs['heatmap']
+ size_target = inputs['size']
+ offset_target = inputs['offset']
+ index = inputs['index']
+ mask = inputs['index_mask']
+ heatmap = paddle.clip(F.sigmoid(heatmap), 1e-4, 1 - 1e-4)
+ heatmap_loss = self.focal_loss(heatmap, heatmap_target)
+
+ size = paddle.transpose(size, perm=[0, 2, 3, 1])
+ size_n, size_h, size_w, size_c = size.shape
+ size = paddle.reshape(size, shape=[size_n, -1, size_c])
+ index = paddle.unsqueeze(index, 2)
+ batch_inds = list()
+ for i in range(size_n):
+ batch_ind = paddle.full(
+ shape=[1, index.shape[1], 1], fill_value=i, dtype='int64')
+ batch_inds.append(batch_ind)
+ batch_inds = paddle.concat(batch_inds, axis=0)
+ index = paddle.concat(x=[batch_inds, index], axis=2)
+ pos_size = paddle.gather_nd(size, index=index)
+ mask = paddle.unsqueeze(mask, axis=2)
+ size_mask = paddle.expand_as(mask, pos_size)
+ size_mask = paddle.cast(size_mask, dtype=pos_size.dtype)
+ pos_num = size_mask.sum()
+ size_mask.stop_gradient = True
+ size_target.stop_gradient = True
+ size_loss = F.l1_loss(
+ pos_size * size_mask, size_target * size_mask, reduction='sum')
+ size_loss = size_loss / (pos_num + 1e-4)
+
+ ### giou loss
+ iou = paddle.transpose(iou, perm=[0, 2, 3, 1])
+ iou_n, iou_h, iou_w, iou_c = iou.shape
+ iou = paddle.reshape(iou, shape=[iou_n, -1, iou_c])
+ pos_iou = paddle.gather_nd(iou, index=index)
+ iou_mask = paddle.expand_as(mask, pos_iou)
+ iou_mask = paddle.cast(iou_mask, dtype=pos_iou.dtype)
+ pos_num = iou_mask.sum()
+ iou_mask.stop_gradient = True
+ gt_bbox_xys = inputs['bbox_xys']
+ gt_bbox_xys.stop_gradient = True
+ centers_x = (gt_bbox_xys[:,:,0:1] + gt_bbox_xys[:,:,2:3]) / 2.0
+ centers_y = (gt_bbox_xys[:,:,1:2] + gt_bbox_xys[:,:,3:4]) / 2.0
+ x1 = centers_x - pos_size[:,:,0:1]
+ y1 = centers_y - pos_size[:,:,1:2]
+ x2 = centers_x + pos_size[:,:,2:3]
+ y2 = centers_y + pos_size[:,:,3:4]
+ pred_boxes = paddle.concat([x1, y1, x2, y2], axis=-1)
+
+ iou_loss = self.iou_loss(
+ pred_boxes * iou_mask,
+ gt_bbox_xys * iou_mask,
+ iou_weight=iou_mask,
+ loc_reweight=None)
+ iou_loss = iou_loss / (pos_num + 1e-4)
+
+ offset = paddle.transpose(offset, perm=[0, 2, 3, 1])
+ offset_n, offset_h, offset_w, offset_c = offset.shape
+ offset = paddle.reshape(offset, shape=[offset_n, -1, offset_c])
+ pos_offset = paddle.gather_nd(offset, index=index)
+ offset_mask = paddle.expand_as(mask, pos_offset)
+ offset_mask = paddle.cast(offset_mask, dtype=pos_offset.dtype)
+ pos_num = offset_mask.sum()
+ offset_mask.stop_gradient = True
+ offset_target.stop_gradient = True
+ offset_loss = F.l1_loss(
+ pos_offset * offset_mask,
+ offset_target * offset_mask,
+ reduction='sum')
+ offset_loss = offset_loss / (pos_num + 1e-4)
+
+ det_loss = weights['heatmap'] * heatmap_loss + weights['size'] * size_loss + weights['offset'] * offset_loss + weights['iou'] * iou_loss
+
+ return {
+ 'det_loss': det_loss,
+ 'heatmap_loss': heatmap_loss,
+ 'size_loss': size_loss,
+ 'iou_loss': iou_loss,
+ 'offset_loss': offset_loss
+ }
diff --git a/examples/Pedestrian_Detection_and_Tracking/code/dla_backbones.py b/examples/Pedestrian_Detection_and_Tracking/code/dla_backbones.py
new file mode 100644
index 000000000..00a238f95
--- /dev/null
+++ b/examples/Pedestrian_Detection_and_Tracking/code/dla_backbones.py
@@ -0,0 +1,295 @@
+# Copyright (c) 2021 PaddlePaddle Authors. All Rights Reserved.
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import math
+import paddle
+import paddle.nn as nn
+import paddle.nn.functional as F
+from ppdet.core.workspace import register, serializable
+from ppdet.modeling.layers import ConvNormLayer
+from ..shape_spec import ShapeSpec
+
+DLA_cfg = {
+ 34: ([1, 1, 1, 2, 2, 1], [16, 32, 64, 128, 256, 512]),
+ 46: ([1, 1, 1, 2, 2, 1], [16, 32, 64, 64, 128, 256]),
+ 60: ([1, 1, 1, 2, 3, 1], [16, 32, 128, 256, 512, 1024]),
+ 102: ([1, 1, 1, 3, 4, 1], [16, 32, 128, 256, 512, 1024])
+ }
+
+
+class BasicBlock(nn.Layer):
+ def __init__(self, ch_in, ch_out, stride=1):
+ super(BasicBlock, self).__init__()
+ self.conv1 = ConvNormLayer(
+ ch_in,
+ ch_out,
+ filter_size=3,
+ stride=stride,
+ bias_on=False,
+ norm_decay=None)
+ self.conv2 = ConvNormLayer(
+ ch_out,
+ ch_out,
+ filter_size=3,
+ stride=1,
+ bias_on=False,
+ norm_decay=None)
+
+ def forward(self, inputs, residual=None):
+ if residual is None:
+ residual = inputs
+
+ out = self.conv1(inputs)
+ out = F.relu(out)
+ out = self.conv2(out)
+ out = paddle.add(x=out, y=residual)
+ out = F.relu(out)
+
+ return out
+
+class Bottleneck(nn.Layer):
+ expansion = 2
+
+ def __init__(self, ch_in, ch_out, stride=1, base_width=64, cardinality=1):
+ super(Bottleneck, self).__init__()
+ self.stride = stride
+ mid_planes = int(
+ math.floor(ch_out * (base_width / 64)) * cardinality
+ )
+ mid_planes = mid_planes // self.expansion
+
+ self.conv1 = ConvNormLayer(
+ ch_in,
+ mid_planes,
+ filter_size=1,
+ stride=1,
+ bias_on=False,
+ norm_decay=None)
+ self.conv2 = ConvNormLayer(
+ mid_planes,
+ mid_planes,
+ filter_size=3,
+ stride=stride,
+ bias_on=False,
+ norm_decay=None)
+ self.conv3 = ConvNormLayer(
+ mid_planes,
+ ch_out,
+ filter_size=1,
+ stride=1,
+ bias_on=False,
+ norm_decay=None)
+
+ def forward(self, inputs, residual=True):
+ if residual is None:
+ residual = inputs
+ out = self.conv1(inputs)
+ out = F.relu(out)
+ out = self.conv2(out)
+ out = F.relu(out)
+ out = self.conv3(out)
+ out += residual
+ out = F.relu(out)
+
+ return out
+
+
+class Root(nn.Layer):
+ def __init__(self, ch_in, ch_out, kernel_size, residual):
+ super(Root, self).__init__()
+ self.conv = ConvNormLayer(
+ ch_in,
+ ch_out,
+ filter_size=1,
+ stride=1,
+ bias_on=False,
+ norm_decay=None)
+ self.residual = residual
+
+ def forward(self, inputs):
+ children = inputs
+ out = self.conv(paddle.concat(inputs, axis=1))
+ if self.residual:
+ out = paddle.add(x=out, y=children[0])
+ out = F.relu(out)
+
+ return out
+
+
+class Tree(nn.Layer):
+ def __init__(self,
+ level,
+ block,
+ ch_in,
+ ch_out,
+ stride=1,
+ level_root=False,
+ root_dim=0,
+ root_kernel_size=1,
+ root_residual=False):
+ super(Tree, self).__init__()
+ if root_dim == 0:
+ root_dim = 2 * ch_out
+ if level_root:
+ root_dim += ch_in
+ if level == 1:
+ self.tree1 = block(ch_in, ch_out, stride)
+ self.tree2 = block(ch_out, ch_out, 1)
+ else:
+ self.tree1 = Tree(
+ level - 1,
+ block,
+ ch_in,
+ ch_out,
+ stride,
+ root_dim=0,
+ root_kernel_size=root_kernel_size,
+ root_residual=root_residual)
+ self.tree2 = Tree(
+ level - 1,
+ block,
+ ch_out,
+ ch_out,
+ 1,
+ root_dim=root_dim + ch_out,
+ root_kernel_size=root_kernel_size,
+ root_residual=root_residual)
+
+ if level == 1:
+ self.root = Root(root_dim, ch_out, root_kernel_size, root_residual)
+ self.level_root = level_root
+ self.root_dim = root_dim
+ self.downsample = None
+ self.project = None
+ self.level = level
+ if stride > 1:
+ self.downsample = nn.MaxPool2D(stride, stride=stride)
+ if ch_in != ch_out:
+ self.project = ConvNormLayer(
+ ch_in,
+ ch_out,
+ filter_size=1,
+ stride=1,
+ bias_on=False,
+ norm_decay=None)
+
+ def forward(self, x, residual=None, children=None):
+ children = [] if children is None else children
+ bottom = self.downsample(x) if self.downsample else x
+ residual = self.project(bottom) if self.project else bottom
+ if self.level_root:
+ children.append(bottom)
+ x1 = self.tree1(x, residual)
+ if self.level == 1:
+ x2 = self.tree2(x1)
+ x = self.root([x2, x1] + children)
+ else:
+ children.append(x1)
+ x = self.tree2(x1, children=children)
+ return x
+
+
+@register
+@serializable
+class DLA(nn.Layer):
+ """
+ DLA, see https://arxiv.org/pdf/1707.06484.pdf
+
+ Args:
+ depth (int): DLA depth, should be 34.
+ residual_root (bool): whether use a reidual layer in the root block
+
+ """
+
+ def __init__(self, depth=34, residual_root=False):
+ super(DLA, self).__init__()
+ levels, channels = DLA_cfg[depth]
+ if depth == 34:
+ block = BasicBlock
+ if depth == 46 or depth == 60 or depth == 102:
+ block = Bottleneck
+ self.channels = channels
+ self.base_layer = nn.Sequential(
+ ConvNormLayer(
+ 3,
+ channels[0],
+ filter_size=7,
+ stride=1,
+ bias_on=False,
+ norm_decay=None),
+ nn.ReLU())
+ self.level0 = self._make_conv_level(channels[0], channels[0], levels[0])
+ self.level1 = self._make_conv_level(
+ channels[0], channels[1], levels[1], stride=2)
+ self.level2 = Tree(
+ levels[2],
+ block,
+ channels[1],
+ channels[2],
+ 2,
+ level_root=False,
+ root_residual=residual_root)
+ self.level3 = Tree(
+ levels[3],
+ block,
+ channels[2],
+ channels[3],
+ 2,
+ level_root=True,
+ root_residual=residual_root)
+ self.level4 = Tree(
+ levels[4],
+ block,
+ channels[3],
+ channels[4],
+ 2,
+ level_root=True,
+ root_residual=residual_root)
+ self.level5 = Tree(
+ levels[5],
+ block,
+ channels[4],
+ channels[5],
+ 2,
+ level_root=True,
+ root_residual=residual_root)
+
+ def _make_conv_level(self, ch_in, ch_out, conv_num, stride=1):
+ modules = []
+ for i in range(conv_num):
+ modules.extend([
+ ConvNormLayer(
+ ch_in,
+ ch_out,
+ filter_size=3,
+ stride=stride if i == 0 else 1,
+ bias_on=False,
+ norm_decay=None), nn.ReLU()
+ ])
+ ch_in = ch_out
+ return nn.Sequential(*modules)
+
+ @property
+ def out_shape(self):
+ return [ShapeSpec(channels=self.channels[i]) for i in range(6)]
+
+ def forward(self, inputs):
+ outs = []
+ im = inputs['image']
+ feats = self.base_layer(im)
+ for i in range(6):
+ feats = getattr(self, 'level{}'.format(i))(feats)
+ outs.append(feats)
+
+ return outs
diff --git a/examples/Pedestrian_Detection_and_Tracking/dataset.md b/examples/Pedestrian_Detection_and_Tracking/dataset.md
new file mode 100644
index 000000000..01492e96a
--- /dev/null
+++ b/examples/Pedestrian_Detection_and_Tracking/dataset.md
@@ -0,0 +1,50 @@
+# 数据集介绍
+
+**Caltech Pedestrian**
+
+Caltech Pedestrain 数据集由加州理工提供、由固定在在城市环境中常规行驶的车辆上的摄像头采集得到。数据集包含约10小时的 640x480 30Hz 视频，其中标注了约250,000帧（约137分钟的片段）中的350,000个边界框和2300个行人。更多信息可参考：[Caltech Pedestrain Detection Benchmark](http://www.vision.caltech.edu/Image_Datasets/CaltechPedestrians/)
+
+
+
+
+
+**CityPersons**
+
+CityPersons 数据集是基于CityScapes数据集在行人检测领域专门建立的数据集，它选取了CityScapes 中5000张精标图片，并对其中的行人进行边界框标注。其中训练集包含2975张图片，验证集包含500张，测试集包含1575张。图片中行人的平均数量为7人，标注提供全身标注和可视区域标注。更多信息可参考：[CityPersons](https://github.com/cvgroup-njust/CityPersons)
+
+
+
+**CUHK-SYSU**
+
+CUHK-SYSU 是一个大规模的人员搜索基准数据集，包含18184张图像和8432个行人，以及99,809个标注好的边界框。根据图像来源，数据集可分为在街道场景下采集和影视剧中采集两部分。在街道场景下，图像通过手持摄像机采集，包含数百个场景，并尝试尽可能的包含不同的视角、光线、分辨率、遮挡和背景等。另一部分数据集采集自影视剧，因为它们可以提供更加多样化的场景和更具挑战性的视角。
+
+该数据集为行人检测和人员重识别提供注释。每个查询人会出现在至少两个图像中，并且每个图像可包含多个查询人和更多的其他人员。数据集被划分为训练集和测试集。训练集包含11206张图片和5532个查询人，测试集包含6978张图片和2900个查询人。更多信息可参考：[End-to-End Deep Learning for Person Search](http://www.ee.cuhk.edu.hk/~xgwang/PS/dataset.html)
+
+
+
+**PRW**
+
+PRW (Person Re-identification in the Wild) 是一个人员重识别数据集。该数据集采集于清华大学，通过六个摄像机，采集共10小时的视频。数据集被分为训练、验证和测试集。训练集包含5134帧和482个ID，验证集共570帧和482个ID，测试集则包含6112帧和450个ID。每帧中出现的所有行人都会被标注边界框，同时分配一个ID。更多信息可参考：[PRW](https://github.com/liangzheng06/PRW-baseline)
+
+
+
+**ETHZ**
+
+ETHZ 数据集由一对车载的AVT Marlins F033C摄像头拍摄采集，分辨率为 640x480，帧率为13-14 fps。数据集给出原始图像、标定信息和行人标注信息。更多信息可参考：[ETHZ](https://data.vision.ee.ethz.ch/cvl/aess/dataset/)
+
+
+
+
+
+**MOT16**
+
+MOT16数据集是在2016年提出的用于衡量多目标跟踪检测和跟踪方法标准的数据集，专门用于行人跟踪。其主要标注目标为移动或静止的行人与行进中的车辆。MOT16基于MOT15添加了更细化的标注和更多的边界框，它拥有更加丰富的画面、不同拍摄视角及不同的天气情况。MOT16数据集共有14个视频，其中7个为带有标注的训练集，7个为测试集。它因为提供了标注好的检测结果，因此可以免去目标检测部分，更加关注在目标跟踪部分。更多信息可参考：[MOT16](https://motchallenge.net/data/MOT16/)
+
+
+
+
+
+**MOT17**
+
+MOT17与MOT16数据集相同，但标注更为准确。更多信息可参考：[MOT17](https://motchallenge.net/data/MOT17/)
+
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/dataset/caltech.png b/examples/Pedestrian_Detection_and_Tracking/images/dataset/caltech.png
new file mode 100644
index 000000000..2680ff3ee
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/dataset/caltech.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/dataset/citypersons.png b/examples/Pedestrian_Detection_and_Tracking/images/dataset/citypersons.png
new file mode 100644
index 000000000..2f1faf6ce
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/dataset/citypersons.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/dataset/cuhk_sysu.png b/examples/Pedestrian_Detection_and_Tracking/images/dataset/cuhk_sysu.png
new file mode 100644
index 000000000..d3f051c75
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/dataset/cuhk_sysu.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/dataset/ethz.png b/examples/Pedestrian_Detection_and_Tracking/images/dataset/ethz.png
new file mode 100644
index 000000000..4214b400f
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/dataset/ethz.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/dataset/mot16.png b/examples/Pedestrian_Detection_and_Tracking/images/dataset/mot16.png
new file mode 100644
index 000000000..677b69ec6
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/dataset/mot16.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/dataset/prw.png b/examples/Pedestrian_Detection_and_Tracking/images/dataset/prw.png
new file mode 100644
index 000000000..95676ee18
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/dataset/prw.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/demo.png b/examples/Pedestrian_Detection_and_Tracking/images/demo.png
new file mode 100644
index 000000000..6270f947a
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/demo.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/optimization/cutmix.png b/examples/Pedestrian_Detection_and_Tracking/images/optimization/cutmix.png
new file mode 100644
index 000000000..7dd679779
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/optimization/cutmix.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/optimization/dcn.png b/examples/Pedestrian_Detection_and_Tracking/images/optimization/dcn.png
new file mode 100644
index 000000000..91056995a
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/optimization/dcn.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/images/optimization/dla.png b/examples/Pedestrian_Detection_and_Tracking/images/optimization/dla.png
new file mode 100644
index 000000000..0bf77782f
Binary files /dev/null and b/examples/Pedestrian_Detection_and_Tracking/images/optimization/dla.png differ
diff --git a/examples/Pedestrian_Detection_and_Tracking/improvements.md b/examples/Pedestrian_Detection_and_Tracking/improvements.md
new file mode 100644
index 000000000..3e4c4e68c
--- /dev/null
+++ b/examples/Pedestrian_Detection_and_Tracking/improvements.md
@@ -0,0 +1,275 @@
+## 6. 模型优化（进阶）
+
+### 6.1 精度优化
+
+本小节侧重展示在模型优化过程中，提升模型精度的思路。在这些思路中，有些会对精度有所提升，有些没有。在其他人流量统计/人体检测场景中，可以根据实际情况尝试如下策略，不同的场景下可能会有不同的效果。
+
+#### (1) 基线模型选择
+
+本案例采用FairMOT模型作为基线模型，其骨干网络选择是DLA34。基线模型共有三种：
+
+1）训练基于NVIDIA Tesla V100 32G 2GPU，batch size = 6，使用Adam优化器，模型使用CrowdHuman数据集进行预训练；
+
+2）训练基于NVIDIA Tesla V100 32G 4GPU，batch size = 8，使用Momentum优化器，模型使用CrowdHuman数据集进行预训练；
+
+3）训练基于NVIDIA Tesla V100 32G 4GPU，batch size = 8，使用Momentum优化器，模型使用ImageNet数据集进行预训练。
+
+模型优化时使用的数据集，参见 `调优数据集`。
+
+| 模型 | MOTA | 推理速度 |
+| ------------------------------------------------------ | ---- | -------- |
+| baseline (dla34 2gpu bs6 adam lr=0.0001) | 70.9 | 15.600 |
+| baseline (dla34 4gpu bs8 momentum) | 67.5 | 15.291 |
+| baseline (dla34 4gpu bs8 momentum + imagenet_pretrain) | 64.3 | 15.314 |
+
+
+
+#### (2) 数据增强
+
+**增加cutmix**
+
+下图中展示了三种数据增强的方式：
+
+* Mixup: 将随机两幅图像以一定的全值叠加构成新的图像；
+* Cutout：将图像中随机区域剪裁掉，用0像素值来填充；
+* CutMix：将一张图像中的随机区域剪裁掉，并随机选取另一张图片，用其对应区域中的像素来填充剪裁掉的部分。
+
+
+
+相比于Mixup和Cutout，CutMix在图像分类和目标检测任务上都有更好的效果。因为CutMix要求模型从局部识别对象，可以进一步增强模型定位能力。
+
+实现上，可以通过修改 `configs/mot/fairmot/__base__/fairmot_reader_1088x608.yml`，加入如下代码，实现CutMix数据增强：
+
+```yaml
+TrainReader:
+ inputs_def:
+ image_shape: [3, 608, 1088]
+ sample_transforms:
+ - Decode: {}
+ - RGBReverse: {}
+ - AugmentHSV: {}
+ - LetterBoxResize: {target_size: [608, 1088]}
+ - MOTRandomAffine: {reject_outside: False}
+ - RandomFlip: {}
+
+ - Cutmix: {}
+
+ - BboxXYXY2XYWH: {}
+ - NormalizeBox: {}
+ - NormalizeImage: {mean: [0, 0, 0], std: [1, 1, 1]}
+ - RGBReverse: {}
+ - Permute: {}
+```
+
+实验结果：
+
+| 模型 | MOTA | 推理速度 |
+| -------------------------------- | ---- | -------- |
+| dla34 4gpu bs8 momentum + cutmix | 67.7 | 15.528 |
+
+在baseline中加入cutmix，模型MOTA提升0.2%。
+
+
+
+#### (3) 可变形卷积
+
+可变形卷积（Deformable Convolution Network, DCN）顾名思义就是卷积的位置是可变形的，并非在传统的 $N \times N$ 网格上做卷积，这样的好处就是更准确地提取到我们想要的特征（传统的卷积仅仅只能提取到矩形框的特征），通过一张图我们可以更直观地了解：
+
+
+
+在上面这张图里面，左边传统的卷积显然没有提取到完整绵羊的特征，而右边的可变形卷积则提取到了完整的不规则绵羊的特征。本实验在 CenterNet head 中加入了DCN，具体实现方法为：使用 `code/centernet_head_dcn.py` 中的代码替换 `ppdet/modeling/heads/centernet_head.py` 中的代码。
+
+实验结果：
+
+| 模型 | MOTA | 推理速度 |
+| ----------------------------- | ---- | -------- |
+| dla34 4gpu bs8 momentum + dcn | 67.2 | 16.695 |
+
+在baseline中加入dcn，模型MOTA降低0.3%。
+
+
+
+#### (4) syncbn+ema
+
+**syncbn**
+
+默认情况下，在使用多个GPU卡训练模型的时候，Batch Normalization都是非同步的 (unsynchronized)。每次迭代时，输入被分为多等分，然后在不同的卡上进行前向后向运算，每个卡上的模型都是单独运算的，相应的Batch Normalization也是在卡内完成。因此BN所归一化的样本数量也只局限于卡内的样本数。开启跨卡同步Batch Normalization后，在前向运算时即可得到全局的均值和方差，后向运算时得到相应的全局梯度，卡与卡之间同步。
+
+**ema**
+
+在深度学习中，经常会使用EMA（指数移动平均）这个方法对模型的参数做平均，以求提高测试指标并增加模型鲁棒。指数移动平均（Exponential Moving Average）也叫权重移动平均（Weighted Moving Average），是一种给予近期数据更高权重的平均方法。在深度学习优化中，其基本假设为，模型权重在最后的n步内会在最优点附近震荡，所以我们取n步后的平均值，则能使模型更加鲁棒。
+
+本实验中，使用synbn和ema，可以通过在 `configs/mot/fairmot/_base_/fairmot_dla34.yml` 中，进行如下修改：
+
+```yaml
+architecture: FairMOT
+pretrain_weights: https://paddledet.bj.bcebos.com/models/pretrained/fairmot_dla34_crowdhuman_pretrained.pdparams
+norm_type: sync_bn
+use_ema: true
+ema_decay: 0.9998
+```
+
+实验结果：
+
+| 模型 | MOTA | 推理速度 |
+| -------------------------------------- | ---- | -------- |
+| dla34 4gpu bs8 momentum + syncbn + ema | 67.4 | 16.695 |
+
+在baseline上开启syncbn和ema，模型MOTA降低0.1%。
+
+
+
+#### (5) 优化策略
+
+Adam使用动量和自适应学习率来加快收敛速度。对梯度的一阶矩阵估计和二阶矩阵估计进行综合考虑，以此计算更新步长。本实验中可以通过在 `PaddleDetection/configs/mot/fairmot/_base_/optimizer_30e.yml` 中，进行如下修改：
+
+```yaml
+LearningRate:
+ base_lr: 0.0002
+ schedulers:
+ - !PiecewiseDecay
+ gamma: 0.1
+ milestones: [20,]
+ use_warmup: False
+
+OptimizerBuilder:
+ optimizer:
+ type: Adam
+ regularizer: NULL
+```
+
+实验结果：
+
+| 模型 | MOTA | 推理速度 |
+| ----------------------------- | ---- | -------- |
+| dla34 4gpu bs6 adam lr=0.0002 | 71.1 | 15.823 |
+
+
+
+#### (6) attention
+
+**Spatial Gate**
+
+用 `code/centernet_fpn_attention.py` 中的代码替换 `PaddleDetection/ppdet/modeling/necks/centernet_fpn.py`。设置 `self.attention = SpatialGate()`。
+
+```python
+self.attention = SpatialGate()
+# self.attention = SANN_Attention(c_state = False, s_state = True) # spatial_attention
+```
+
+
+
+**SANN attention**
+
+用 `code/centernet_fpn_attention.py` 中的代码替换 `PaddleDetection/ppdet/modeling/necks/centernet_fpn.py`。设置 `self.attention = SANN_Attention(c_state = False, s_state = True) # spatial_attention` 。
+
+```python
+# self.attention = SpatialGate()
+self.attention = SANN_Attention(c_state = False, s_state = True) # spatial_attention
+```
+
+
+
+实验结果：
+
+| 模型 | MOTA | 推理速度 |
+| ------------------------------------------------------------ | ---- | -------- |
+| dla34 4gpu bs8 momentum + attention | 67.6 | - |
+| dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema + attention | 71.6 | - |
+| dla34 dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema + sann | 71.1 | - |
+| dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema + attention + cutmix | 71.3 | - |
+
+在baseline上新增了attention，模型MOTA增加0.1%。在baseline上回合使用优化策略、+syncbn+ema和增加spatial gate/ sann attention，模型MOTA增加4.1% / 3.6%。新增attention部分暂不支持开启TensorRT进行推理。
+
+
+
+#### (7) backbone
+
+
+
+在本实验中，我们尝试将baseline中的centernet的backbone由DLA-34更换为其他更大的模型，如DLA-46-C、DLA-60及DLA-102。因为更换的backbone都只有在ImageNet上的预训练模型，而我们实验中使用的dla34 backbone 是在CrowdHuman上做过预训练的。所以这一部分的实验结果要与 `baseline (dla34 4gpu bs8 momentum + image_pretrain)` 进行比较。替换backbone可以通过 `code/dla_backbones`中的代码来替换 `PaddleDetection/ppdet/modeling/backbones/dla.py` 中的代码，并通过调整 `depth` 来选择backbone的结构，可选择dla34、46c、60和102。
+
+```python
+class DLA(nn.Layer):
+ """
+ DLA, see https://arxiv.org/pdf/1707.06484.pdf
+
+ Args:
+ depth (int): DLA depth, should be 34.
+ residual_root (bool): whether use a reidual layer in the root block
+
+ """
+
+ def __init__(self, depth=34, residual_root=False):
+
+```
+
+
+
+| 模型 | MOTA | 推理速度 |
+| -------------------------------------------- | ---- | -------- |
+| dla46c 4gpu bs8 momentum + imagenet_pretrain | 61.2 | 16.863 |
+| dla60 4gpu bs8 momentum + imagenet_pretrain | 58.8 | 12.531 |
+| dla102 4gpu bs8 momentum + imagenet_pretrain | 54.8 | 12.469 |
+
+
+
+#### (8) GIoU Loss
+
+GIoU解决了IoU Loss存在的两个问题：
+
+* 预测框如果和真实框没有重叠，则IoU始终为0，损失函数失去可导性；
+* IoU无法分辨不同方式的对齐，IoU值相同，但预测框的方向可能完全不同。
+
+GIoU提出一种计算方式，对于两个框A和B，先计算出A、B的最小包围框C，然后根据如下公式计算出GIoU:
+$$
+GIoU = IoU - \frac{C-(A \cup B)}{C}
+$$
+GIoU Loss = 1 - GIoU. 如想尝试增加GIoU Loss，可用 `code/centernet_head_iou_head.py` 替换 `ppdet/modeling/heads/centernet_head.py` 中的代码，并且修改 `ppdet/modeling/architectures/fairmot.py` 文件，在第84行增加 `'iou_loss': det_outs['iou_loss'],` :
+
+```python
+det_loss = det_outs['det_loss']
+loss = self.loss(det_loss, reid_loss)
+loss.update({
+ 'heatmap_loss': det_outs['heatmap_loss'],
+ 'size_loss': det_outs['size_loss'],
+ 'iou_loss': det_outs['iou_loss'],
+ 'offset_loss': det_outs['offset_loss'],
+ 'reid_loss': reid_loss
+ })
+return loss
+```
+
+实验结果如下：
+
+| 模型 | MOTA | 推理速度 |
+| ------------------------------------------------------- | ---- | -------- |
+| dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema + iou head | 71.6 | 15.723 |
+
+
+
+### 6.2 性能优化
+
+暂无
+
+全部实验结果：
+
+| 模型 | MOTA | 推理速度（开启TensorRT） |
+| ------------------------------------------------------------ | ---- | ------------------------ |
+| baseline (dla34 2gpu bs6 adam lr=0.0001) | 70.9 | 15.600 |
+| baseline (dla34 4gpu bs8 momentum) | 67.5 | 15.291 |
+| baseline (dla34 4gpu bs8 momentum + imagenet_pretrain) | 64.3 | 15.314 |
+| dla34 4gpu bs8 momentum + dcn | 67.2 | 16.695 |
+| dla34 4gpu bs8 momentum + syncbn + ema | 67.4 | 16.103 |
+| dla34 4gpu bs8 momentum + cutmix | 67.7 | 15.528 |
+| dla34 4gpu bs8 momentum + attention | 67.6 | - |
+| dla34 4gpu bs6 adam lr=0.0002 | 71.1 | 15.823 |
+| dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema | 71.7 | 15.038 |
+| dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema + attention | 71.6 | - |
+| dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema + iou head | 71.6 | 15.723 |
+| dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema + sann | 71.1 | - |
+| dla34 4gpu bs6 adam lr=0.0002 + syncbn + ema + attention + cutmix | 71.3 | - |
+| dla46c 4gpu bs8 momentum + imagenet_pretrain | 61.2 | 16.863 |
+| dla60 4gpu bs8 momentum + imagenet_pretrain | 58.8 | 12.531 |
+| dla102 4gpu bs8 momentum + imagenet_pretrain | 54.8 | 12.469 |
+
